Product Overview

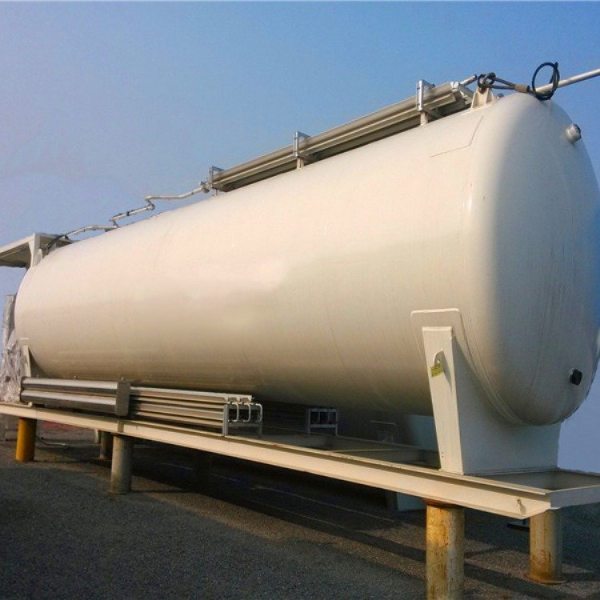

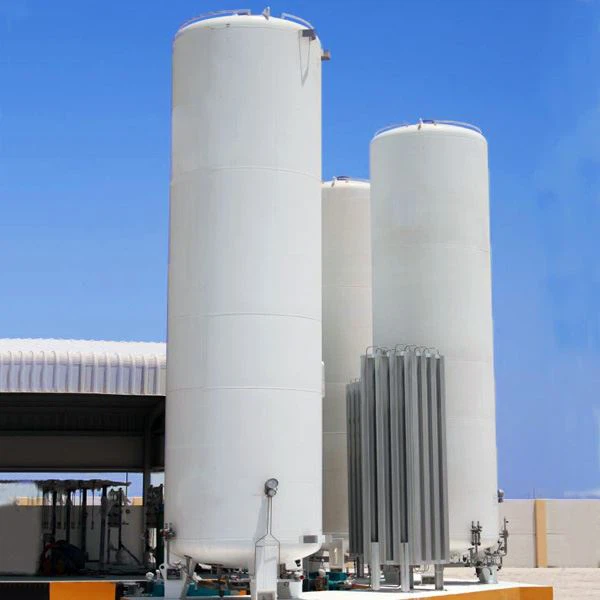

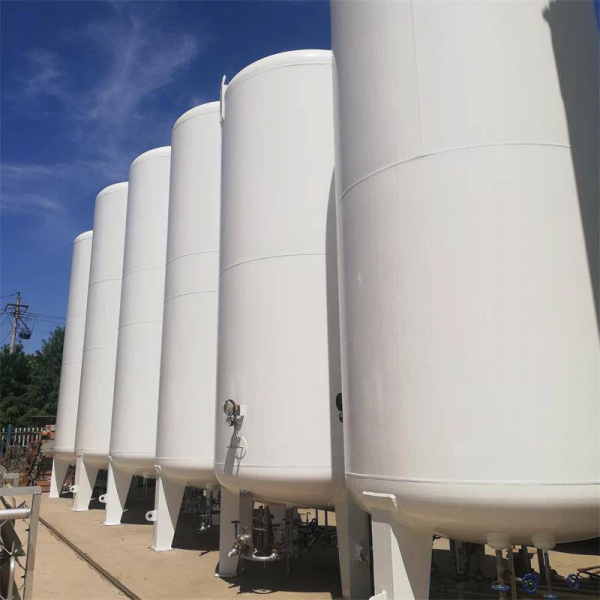

50–500 m³ Cryogenic Liquid Storage Tanks – CE/ASME Certified, Premium Solutions for Extreme Temperatures
Why Choose Our Cryogenic Storage Tanks?
In industries handling liquefied gases like oxygen, nitrogen, argon, or LNG, reliable cryogenic storage is critical. Our 50–500 m³ capacity tanks are engineered to safely store ultra-cold liquids at temperatures as low as -196°C (-320°F). Designed for durability and efficiency, these tanks are ideal for industrial gas suppliers, hospitals, research labs, and energy facilities.
Key Features & Benefits
CE & ASME Certified Compliance
Meets stringent European (CE) and American (ASME) safety standards, ensuring global acceptance.
Rigorous testing for pressure resistance, leak-proofing, and structural integrity.
Customizable Capacity Options
Flexible range from 50 m³ to 500 m³ to match your operational scale.
Modular design allows for future expansion without costly upgrades.
Advanced Insulation Technology
High-performance vacuum insulation minimizes heat transfer, reducing boil-off losses by up to 30%.
Maintains stable internal temperatures for prolonged periods.
Robust Construction Materials
Double-walled stainless steel design with reinforced support rings.
Corrosion-resistant coatings extend lifespan in harsh environments.
Smart Monitoring Systems
Integrated sensors for real-time pressure, temperature, and level tracking.
Alerts for abnormal conditions via mobile/PC interfaces.
Low Maintenance & Energy Efficiency
Automated pressure relief valves and self-regulating systems cut operational costs.
Easy-access panels simplify inspections and repairs.
Why Partner With Us?
20+ Years of Expertise: Trusted by Fortune 500 companies for precision engineering.
Global Support: On-site installation, training, and 24/7 technical assistance.
Sustainability Focus: Eco-friendly designs reduce carbon footprints.
CTA: Get Your Custom Quote Today!
Ready to upgrade your cryogenic storage? Contact our engineers for a free site assessment and tailored solution.
☎️Call: (+86) 022 85230998
📧Email: [email protected]
🔗Visit Our Product Page
Specifications
| Cryogenic liquid Oxygen / Nitrogen /Argon /LNG Storage Tank | ||||
| NO. | Model | Dimension (mm) | Net Weight (KG) | Type |
| 1 | CFL-5/0.8 | Φ1916*5172 | 3930 | Vertical |
| 2 | CFL-10/0.8 | Φ2316*5981 | 5840 | |
| 3 | CFL-15/0.8 | Φ2316*8035 | 7900 | |
| 4 | CFL-20/0.8 | Φ2716*7377 | 9250 | |
| 5 | CFL-30/0.8 | Φ2920*8904 | 12600 | |
| 6 | CFL-40/0.8 | Φ2920*11290 | 16000 | |
| 7 | CFL-50/0.8 | Φ3220*11304 | 18700 | |
| 8 | CFL-80/0.8 | Φ3420*14920 | 31200 | |
| 9 | CFL-100/0.8 | Φ3420*18102 | 37200 | |
| 10 | CFL-150/0.8 | Φ3724*22128 | 53200 | |
| 11 | CFL-200/0.8 | Φ4024*24085 | 69400 | |
| 12 | CFL-50/1.6 | Φ3220*11304 | 25600 | |
| 13 | CFL-100/1.6 | Φ3520*17276 | 46300 | |
