Before you choose a CO₂ vaporizer, you need to figure out a few things.
First, what capacity do you need (how much gas per hour)? What pressure will it run at? And where will you put it? Then, pick a heating method – hot air, electric, or steam. Make sure it has safety features built-in, like protection against liquid carryover, to keep your other equipment safe.
Here’s what you should look at to make the best choice:
1.Figure out how much gas you need (flow rate and capacity)
When you’re picking the flow rate and pressure, don’t just think about how much you use on average. You should plan for your peak demand – the most gas you’ll ever need at one time. This way, you won’t have pressure drops when your equipment is working hard.
These vaporizers can handle a wide range of needs, from small setups (like 30 kW or 50 kg/hr) to big industrial jobs. Since they’re made with a modular design, you can easily add more units as your needs grow, letting you expand your capacity.
2.Pick your heating method

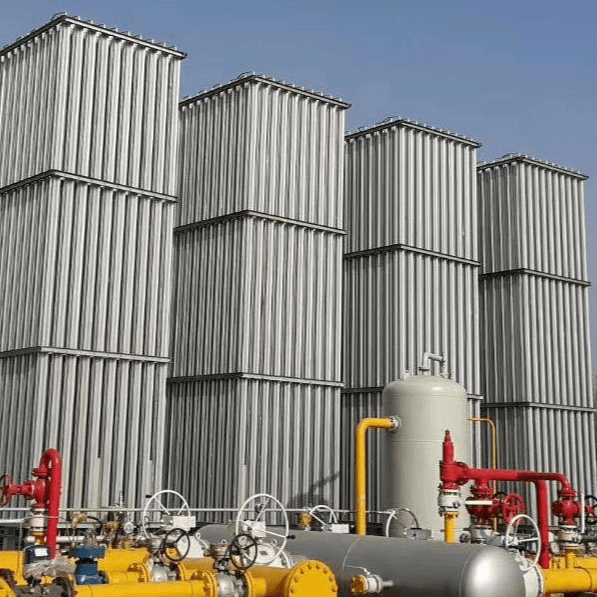

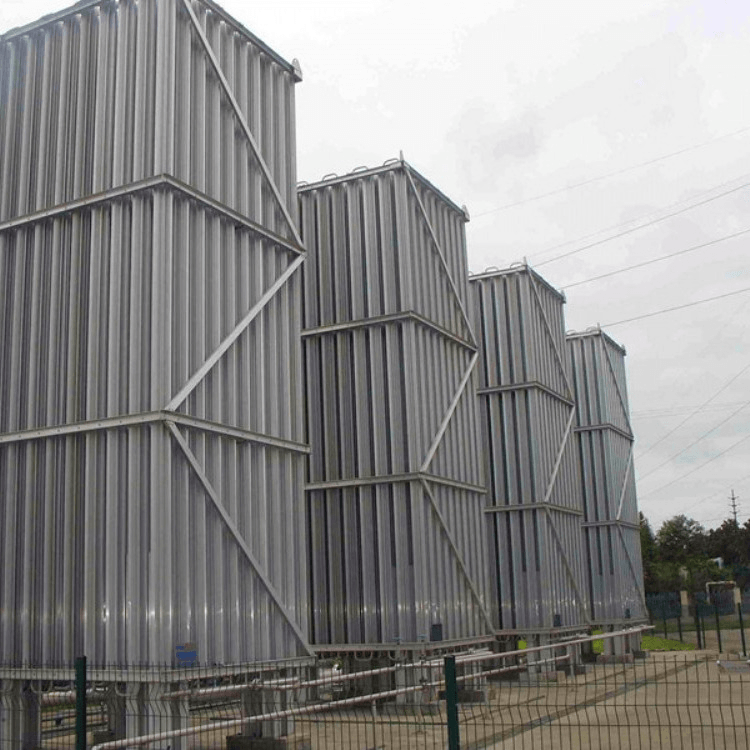

Air vaporizers usually go outside. They use the natural air flow passing over finned aluminum tubes to warm up the liquid CO₂ and turn it into gas.
These don’t need electricity or fuel, which means they’re really energy efficient and cheap to run. But, they don’t work as well in cold weather, and you need enough space for good airflow.
Electric vaporizers give you steady, high-capacity performance no matter how cold it is outside or what the weather’s like.
They’re crucial for big, constant industrial or medical gas needs. The downside is they use electricity and cost more to operate.
3.Check for important safety features
For the evaporator, safety is of paramount importance because the change of carbon dioxide from liquid to gas occurs very rapidly, and its depressurization and cooling process is extremely cold.
Anti-freezing system: When the temperature of the carbon dioxide is too low, this system will automatically shut off the flow of carbon dioxide to prevent the occurrence of “liquid residue”, that is, frozen liquid may cause permanent damage to the pressure reducing valve and other equipment.
Safety valve: You need this to protect the vaporizer coils and storage tanks from getting too much pressure.
Indoor Ventilation: If you’re putting electric or steam-heated vaporizers inside, make sure they have strong safety covers. You should also install CO₂ monitors to catch any dangerous leaks.
4.What you’ll use it for (your industry)
For beverages (industrial beverages): If you want to produce carbonated beverages or dry ice, you need corresponding equipment to continuously inject a large amount of gas. Usually, such equipment is a simple air-cooled unit with a fan, or an air device heated by steam.
For medical purposes: The equipment used in hospitals for respiratory treatment must meet extremely strict ultra-clean air specifications.
For agriculture: If you plan to use it to cultivate plants in green glass greenhouses, you may need a specialized flow regulator and a modular system that uses the surrounding air.
The above are the precautions for selecting carbon dioxide evaporators. If you have any further questions, you can consult the technicians of Zhuoyue Gas Equipment.
