Industrial Liquid Nitrogen Storage Tank Evaporation Rate: Core Guide for Export Selection of Cold Storage Equipment
In the daily operations of the global cryogenic gas industry, industrial liquid nitrogen storage tanks are the core equipment for ensuring the long-term stable storage of liquid nitrogen. The evaporation rate, as a key indicator directly determining the operating cost, safety stability, and long-term usage efficiency of the tank, has long been one of the most concerned technical parameters by overseas buyers during the selection process. For global industrial users seeking reliable cryogenic equipment suppliers, clearly and professionally understanding the definition, influencing factors, control standards, and selection points of the evaporation rate can not only help you make more rational purchasing decisions but also help you avoid common high-cost traps in the selection of cryogenic storage tanks.
1. What is the evaporation rate of an industrial liquid nitrogen storage tank
In simple terms, the evaporation rate of an industrial liquid nitrogen storage tank refers to the proportion of liquid nitrogen that naturally vaporizes due to the loss of cold energy in the tank’s inner layer, under standard environmental conditions. It is usually measured in “daily evaporation percentage” or “daily evaporation volume”. The normal atmospheric boiling point of liquid nitrogen is -196°C. As long as there is a slight attenuation in the vacuum degree of the tank’s inner layer and the insulation layer performance, heat from the external environment will slowly penetrate into the tank, causing some liquid nitrogen to vaporize. If the vaporized nitrogen cannot be properly utilized, it can only be discharged through the safety discharge valve. The liquid nitrogen that is wasted in this way is the core object of evaporation rate statistics.
For overseas industrial users, the evaporation rate is not an abstract laboratory parameter. If a European metal heat treatment factory uses a liquid nitrogen storage tank with a high evaporation rate, the additional liquid nitrogen loss cost in a year may account for more than 10% of its total gas consumption cost; while a North American biological sample storage laboratory with an abnormally high evaporation rate of the tank may even trigger a rapid increase in the tank’s internal temperature, posing a direct threat to the safety of long-term stored biological samples. Therefore, more and more overseas buyers will directly request the actual measured evaporation rate data during the inquiry stage, rather than merely focusing on the tank’s volume and appearance dimensions.
2. Core Structural Factors Determining the Evaporation Rate

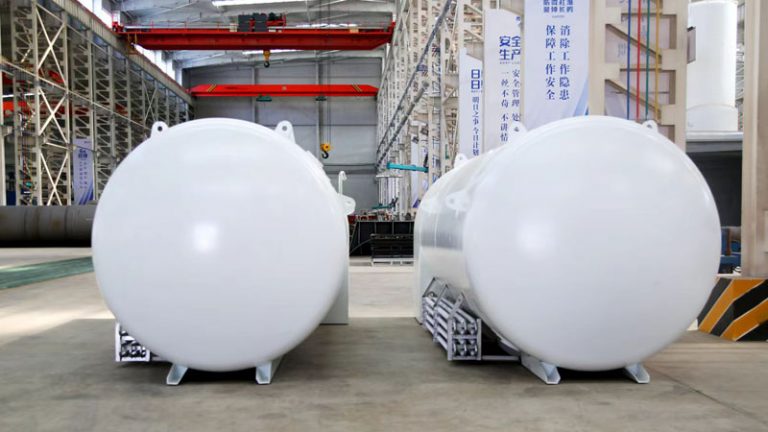

The evaporation rate control level of industrial liquid nitrogen storage tanks is essentially a reflection of the comprehensive strength of a cryogenic equipment manufacturer in materials, processes, and detailed design. Currently, the mainstream low-evaporation-rate storage tanks generally adopt a double-layer vacuum multi-layer insulation structure, which is the core technical path for controlling heat leakage.
Firstly, the vacuum degree of the tank’s inner layer is controlled. High-quality industrial liquid nitrogen storage tanks will extract a high vacuum environment between the inner and outer tanks to completely eliminate heat loss caused by air conduction. If the vacuum degree of the inner layer is not up to standard, residual air molecules will become a “bridge” for heat transfer, directly leading to a significant increase in evaporation rate. According to industry measurement data, if the tank’s inner layer vacuum fails, a storage tank with an original daily evaporation rate of less than 0.7% may suddenly increase its daily evaporation volume to 30 to 40 liters, and the liquid nitrogen in the tank may even face a complete depletion risk within just 24 hours.
Secondly, the quality of the multi-layer wound insulation layer. High-quality storage tanks will wind dozens of layers of insulation structure composed of insulation materials and reflective screens on the outer wall of the container. Through a layered blocking method, it maximally weakens the heat radiation transfer from the outside. Many overseas customers have reported that some low-priced storage tanks, although also labeled as “multi-layer insulation”, actually have insufficient winding layers and material density that does not meet the standard. After using them for one or two years, the insulation layer will experience settlement and misalignment, and the evaporation rate will significantly increase, resulting in higher maintenance costs in the later stage.
In addition, the details of the valve and pipeline system design will also directly affect the evaporation rate performance. Using an optimized liquid phase valve, booster valve, and discharge valve control system can minimize unnecessary heat leakage. By combining high-precision pressure gauges and safety interlock devices, it can not only ensure that the pressure inside the tank remains within the safe range, but also prevent the additional loss of liquid nitrogen caused by frequent discharges due to overpressure.
III. Key Practical Points for Evaporation Rate Selection When Selecting for Overseas Customers
When adapting to the procurement demands of different regions around the world, we have found that overseas customers in different industries have significant differences in their concerns about evaporation rate. You can quickly locate the corresponding selection criteria based on your actual working conditions.
For large-scale industrial gas usage scenarios, such as in the steel processing and chemical production fields, customers are more concerned about the overall cost during long-term operation. Such customers usually choose large-capacity industrial liquid nitrogen storage tanks ranging from 5 cubic meters to 200 cubic meters. What they care about most is the stable low evaporation rate performance. A large-capacity storage tank with a daily evaporation rate of ≤ 0.7% can help users reduce thousands of liters of liquid nitrogen waste compared to ordinary high-evaporation-rate products. Over a year, the economic benefits are very considerable.
For laboratory, medical sample storage, and other scenarios with extremely high requirements for temperature stability, customers are more concerned about the long-term consistency of evaporation rate and the ability to issue early warnings for abnormal fluctuations. Many experienced laboratory users regard the continuous and slow increase in evaporation rate as an early signal of vacuum degradation in the tank’s inner layer. They record the daily pressure changes and discharge frequency in the tank’s daily management. Once they detect abnormal fluctuations in the evaporation rate, they will arrange equipment inspection and maintenance in advance to avoid the emergency situation of a large amount of liquid nitrogen vaporization within a short period after vacuum failure.
For users of mobile liquid nitrogen storage tanks that require cross-regional transportation, they will also pay special attention to the evaporation rate performance under dynamic conditions. Under the vibration conditions of road and rail transportation, a well-designed liquid nitrogen storage tank will have a smaller pressure change value per unit time and a more reasonable fluctuation range of evaporation rate, which can ensure the safety and stability of liquid nitrogen during long-distance transportation.
IV. How to Achieve Long-Term Stable Control of Evaporation Rate through Reasonable Maintenance
Many overseas purchasers, after receiving the equipment, are most concerned about how to maintain the low evaporation rate performance of the tank over the long term. In fact, as long as several basic daily maintenance tasks are done well, the tank can maintain a stable evaporation rate performance within the design service life.
Firstly, avoid the tank shell from being impacted by external forces and experiencing intense vibrations. The deformation of the shell may cause the misalignment of the inner insulation structure in the vacuum layer, damaging the original high-vacuum environment. Secondly, regularly inspect all sealing parts of the tank to prevent water vapor and impurities from entering the vacuum layer and affecting the vacuum degree. During daily use, try to keep the tank within a reasonable filling rate range. Do not operate the tank at a low liquid level for a long time or overfill it, as this can keep the tank in the optimal working condition.
For tanks that are out of service for a long time, do not completely empty the liquid nitrogen in the tank. Keeping a small amount of liquid nitrogen as a cold source to maintain the low-temperature state inside the tank is more conducive to protecting the vacuum performance of the inner layer and avoiding problems such as long-term high evaporation rate after re-filling.
As a global market-oriented low-temperature gas equipment supplier, Zhuoyue Gas Equipment deeply understands that the evaporation rate, a seemingly simple technical parameter, carries multiple expectations from overseas customers regarding equipment operation safety, long-term usage costs, and production stability. Through transparent and professional technical sharing, we help industrial users around the world select truly suitable low-evaporation-rate industrial liquid nitrogen storage tanks for their own working conditions. This is both the core competitiveness of Zhuoyue cryogenic equipment and the foundation for building long-term trust with global customers.
