🟨Product Overview

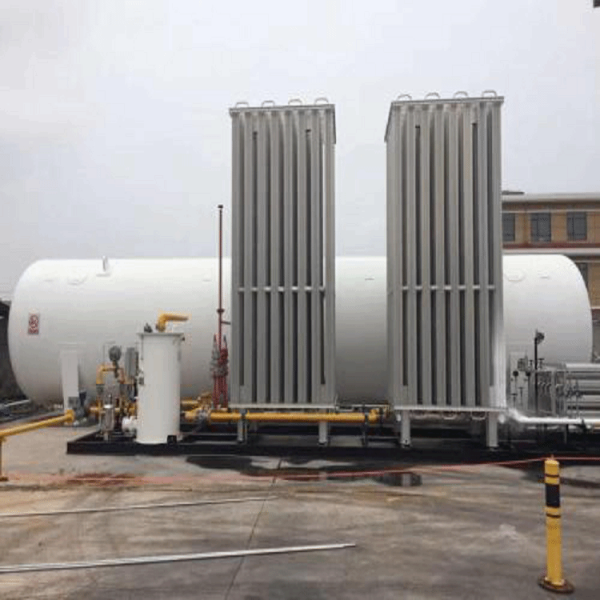

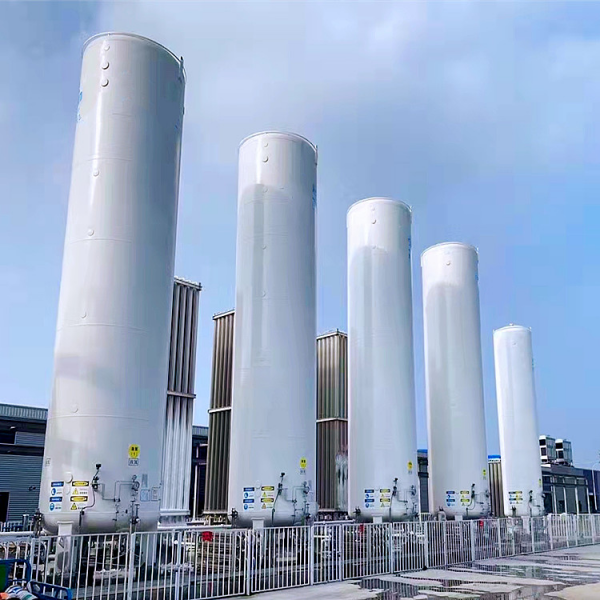

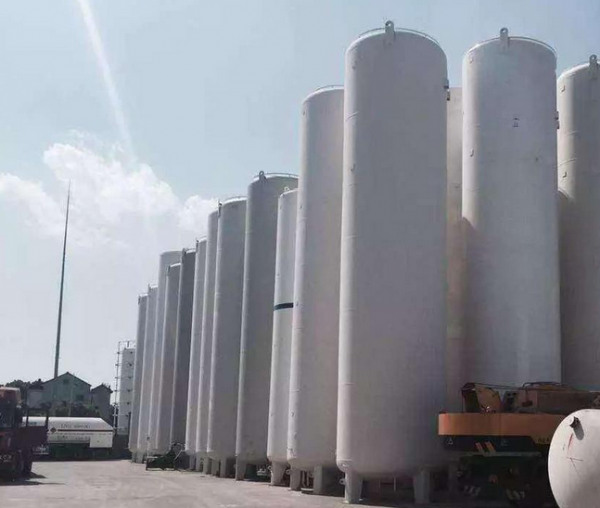

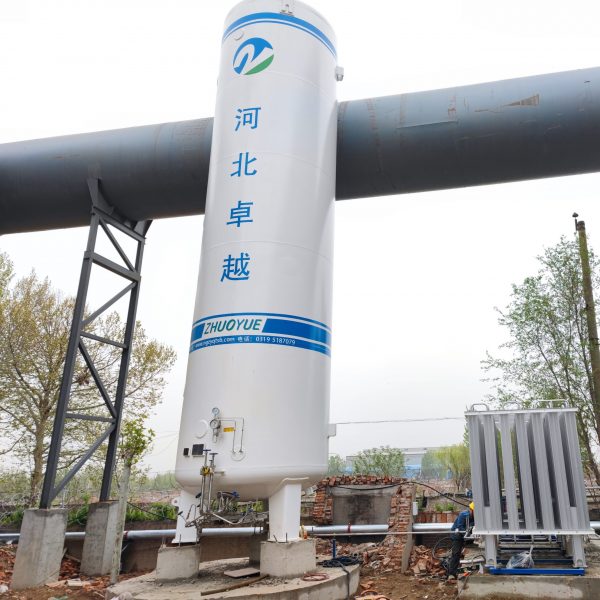

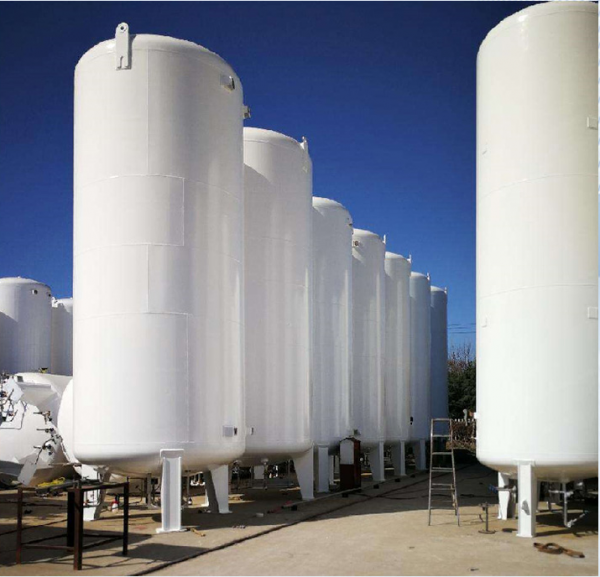

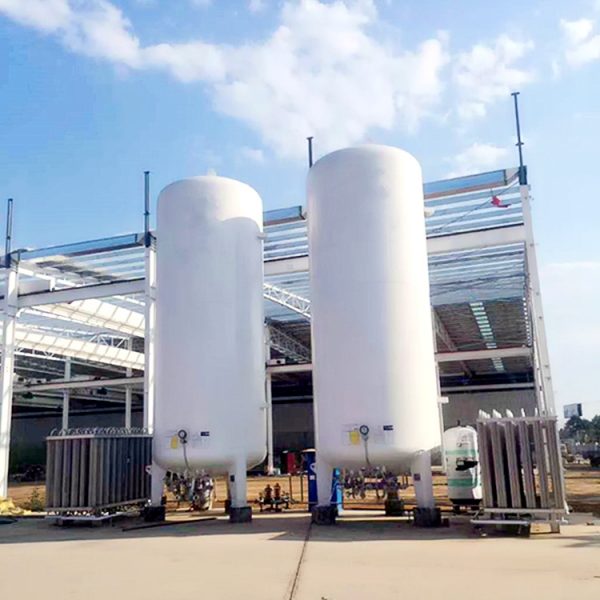

The large-capacity cryogenic liquid nitrogen storage tanks we produce are insulated with vacuum powder, with high insulation efficiency and an effective volume ranging from 5 to 100 cubic meters. The inner container is made of low-temperature resistant materials compatible with the medium, using austenitic stainless steel S30408, and operational temperature down to -196°C. The casing operates at normal temperature and is made of common carbon steel and low alloy steel, using Q245R/Q345R.
🟨Specification
| Cryogenic liquid Oxygen / Nitrogen /Argon /LNG Storage Tank | ||||
| NO. | Model | Dimension (mm) | Net Weight (KG) | Type |
| 1 | CFL-5/0.8 | Φ1916*5172 | 3930 | Vertical |
| 2 | CFL-10/0.8 | Φ2316*5981 | 5840 | |
| 3 | CFL-15/0.8 | Φ2316*8035 | 7900 | |
| 4 | CFL-20/0.8 | Φ2716*7377 | 9250 | |
| 5 | CFL-30/0.8 | Φ2920*8904 | 12600 | |
| 6 | CFL-40/0.8 | Φ2920*11290 | 16000 | |
| 7 | CFL-50/0.8 | Φ3220*11304 | 18700 | |
| 8 | CFL-80/0.8 | Φ3420*14920 | 31200 | |
| 9 | CFL-100/0.8 | Φ3420*18102 | 37200 | |
| 10 | CFL-150/0.8 | Φ3724*22128 | 53200 | |
| 11 | CFL-200/0.8 | Φ4024*24085 | 69400 | |
| 12 | CFL-50/1.6 | Φ3220*11304 | 25600 | |
| 13 | CFL-100/1.6 | Φ3520*17276 | 46300 | |
🟨Company Profile
Nangong Zhuoyue Gas Equipment CO.,LTD. ,more than 20 years of production experience in the gas industry . We are specialized in ambient air vaporizer ,eletrice vaporizer ,PRMS skid and cryogenic tank . We have exported to Mexico,Turkey,Russia,Singapore, Malaysia ,Vietnam,Indonesia, Nigeria and etc. we measure our success by the success of our customers .
🟨Zhuoyue Gas Workshop
🟨Packing & Delivery
🟨Certifications
