Product Description
Overview

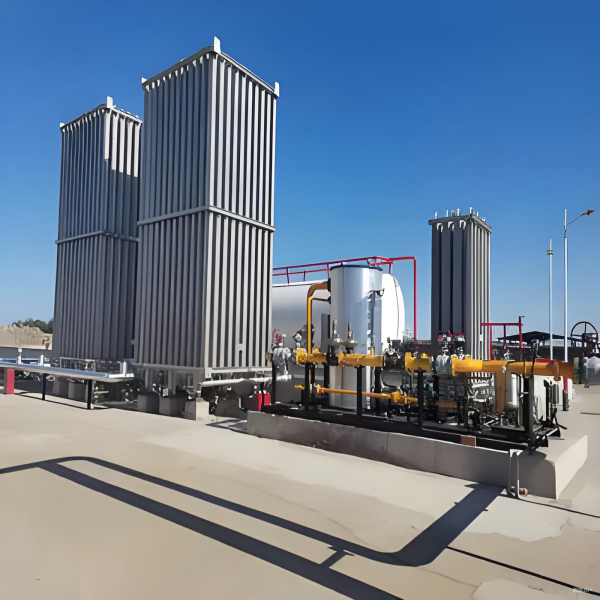

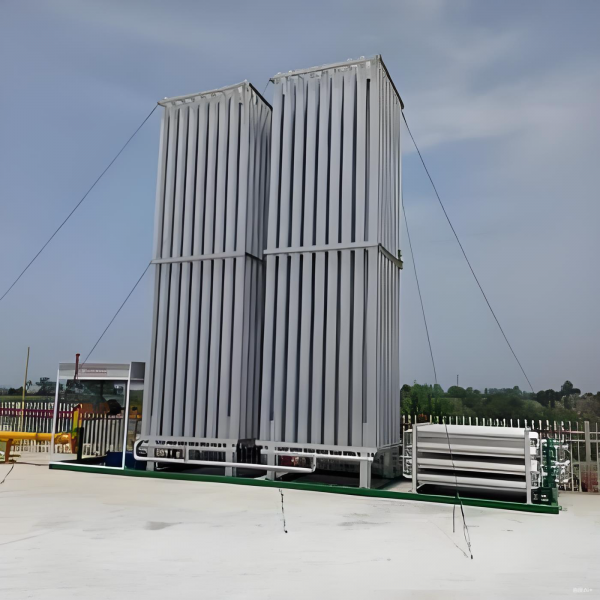

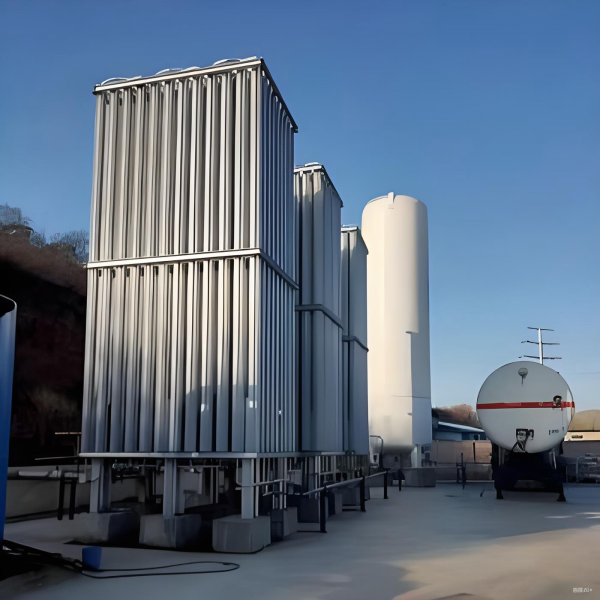

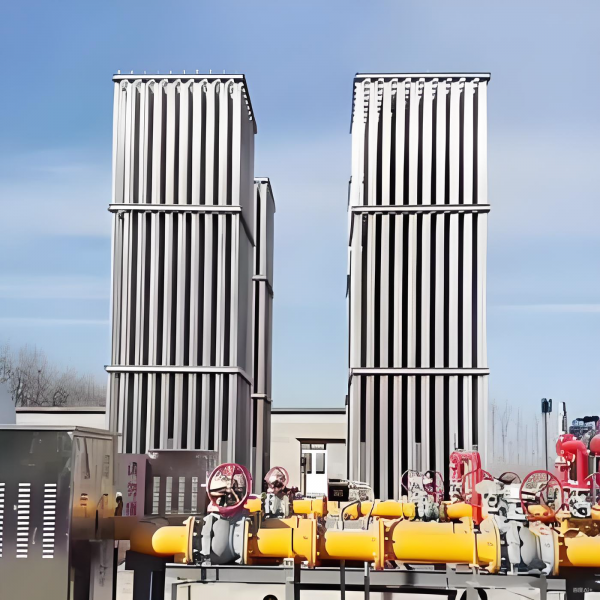

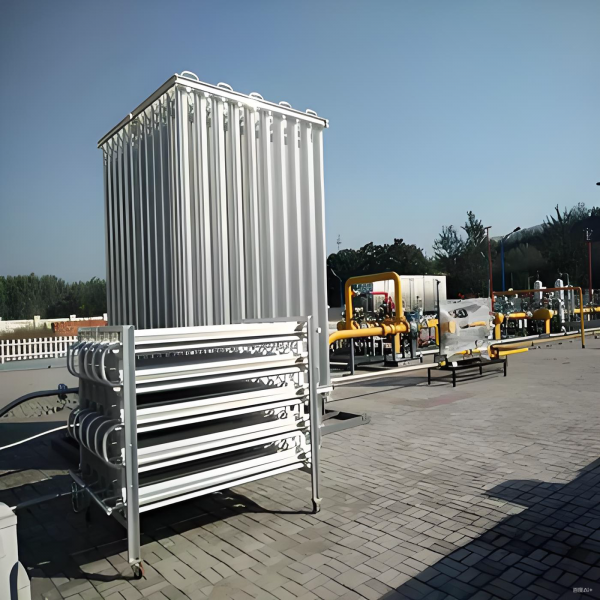

The Ambient Air Vaporizer for CNG Refueling Stations is a cutting-edge solution designed to enhance the efficiency and safety of compressed natural gas (CNG) fueling operations. By utilizing ambient air as the primary heat source, this vaporizer eliminates the need for external energy inputs, making it an environmentally friendly and cost-effective option for CNG refueling stations.
Key Features
1️⃣Energy-Efficient Design: Leverages ambient air temperature to vaporize liquid natural gas (LNG), significantly reducing energy consumption compared to traditional electric or steam-powered vaporizers.
2️⃣High-Capacity Performance: Capable of handling large volumes of CNG, ensuring uninterrupted fueling operations even during peak demand periods.
3️⃣Durable Construction: Built with robust materials to withstand harsh environmental conditions, including sub-zero temperatures and dusty environments, ensuring long-term reliability.
4️⃣Low Maintenance: Designed with advanced air-cooling technology and pressurized crankcases, reducing maintenance requirements and downtime.
5️⃣Safety-Focused: Incorporates natural gas detection systems and emergency ventilation to ensure safe operation in compliance with industry standards.
6️⃣Customizable Options: Can be tailored to specific operational needs, such as unique temperature ranges or environmental conditions, providing flexibility for various applications.
7️⃣Emission Reduction: Contributes to lower carbon emissions compared to diesel-powered alternatives, aligning with global sustainability goals.
8️⃣Compact Footprint: Ideal for space-constrained refueling stations, offering a seamless integration into existing infrastructure.
Applications
1️⃣Public Transit Fleets: Supports CNG buses and vehicles, reducing emissions in urban areas.
2️⃣Industrial Facilities: Provides efficient fueling for heavy-duty machinery and equipment.
3️⃣Renewable Energy Projects: Integrates with biomethane production for grid injection, enhancing sustainability.
4️⃣Commercial Refueling Stations: Enhances service capacity for consumer vehicles, improving accessibility.
Specification
| Model | Gasification capacity（m³/h） | Pipe inner diameter（mm） | Work pressure（MPa） | Design pressure（MPa） | Test pressure（MPa） | Way to heat up | Working temperature（℃） | |
|---|---|---|---|---|---|---|---|---|
| Pressure test pressure | Air tightness test pressure | |||||||
| DKQ-30A(B) | 30 | 20 | 1.6 | 1.76 | 2.4 | 1.76 | Air | -40~60 |
| DKQ-50A(B) | 50 | 20 | 1.6 | 1.76 | 2.4 | 1.76 | Air | -40~60 |
| DKQ-100A(B) | 100 | 20 | 1.6 | 1.76 | 2.4 | 1.76 | Air | -40~60 |
| DKQ-200A(B) | 200 | 20 | 1.6 | 1.76 | 2.4 | 1.76 | Air | -40~60 |
| DKQ-300A(B) | 300 | 20 | 1.6 | 1.76 | 2.4 | 1.76 | Air | -40~60 |
| DKQ-400A(B) | 400 | 20 | 1.6 | 1.76 | 2.4 | 1.76 | Air | -40~60 |
| DKQ-500A(B) | 500 | 20 | 1.6 | 1.76 | 2.4 | 1.76 | Air | -40~60 |
| DKQ-600A(B) | 600 | 20 | 1.6 | 1.76 | 2.4 | 1.76 | Air | -40~60 |
| DKQ-700A(B) | 700 | 20 | 1.6 | 1.76 | 2.4 | 1.76 | Air | -40~60 |
| DKQ-800A(B) | 800 | 20 | 1.6 | 1.76 | 2.4 | 1.76 | Air | -40~60 |
| DKQ-900A(B) | 900 | 20 | 1.6 | 1.76 | 2.4 | 1.76 | Air | -40~60 |
| DKQ-1000A(B) | 1000 | 20 | 1.6 | 1.76 | 2.4 | 1.76 | Air | -40~60 |
| DKQ-1200A(B) | 1200 | 20 | 1.6 | 1.76 | 2.4 | 1.76 | Air | -40~60 |
| DKQ-1500A(B) | 1500 | 20 | 1.6 | 1.76 | 2.4 | 1.76 | Air | -40~60 |
| DKQ-2000A(B) | 2000 | 20 | 1.6 | 1.76 | 2.4 | 1.76 | Air | -40~60 |
| DKQ-2500A(B) | 2500 | 20 | 1.6 | 1.76 | 2.4 | 1.76 | Air | -40~60 |
| DKQ-3000A(B) | 3000 | 20 | 1.6 | 1.76 | 2.4 | 1.76 | Air | -40~60 |
| DKQ-4000A(B) | 4000 | 20 | 1.6 | 1.76 | 2.4 | 1.76 | Air | -40~60 |
| Model | Gasification capacity（m³/h） | Pipe inner diameter（mm） | Work pressure（MPa） | Design pressure（MPa） | Test pressure（MPa） | Way to heat up | Working temperature（℃） | |
|---|---|---|---|---|---|---|---|---|
| Pressure test pressure | Air tightness test pressure | |||||||
| GKQ-50A(B) | 50 | Φ20X2 | 15 | 16.5 | 22.5 | 16.5 | Air | -40~60 |
| GKQ-100A(B) | 100 | Φ20X2 | 15 | 16.5 | 22.5 | 16.5 | Air | -40~60 |
| GKQ-200A(B) | 200 | Φ20X2 | 15 | 16.5 | 22.5 | 16.5 | Air | -40~60 |
| GKQ-300A(B) | 300 | Φ20X2 | 15 | 16.5 | 22.5 | 16.5 | Air | -40~60 |
| GKQ-400A(B) | 400 | Φ20X2 | 15 | 16.5 | 22.5 | 16.5 | Air | -40~60 |
| GKQ-500A(B) | 500 | Φ20X2 | 15 | 16.5 | 22.5 | 16.5 | Air | -40~60 |
| GKQ-600A(B) | 600 | Φ20X2 | 15 | 16.5 | 22.5 | 16.5 | Air | -40~60 |
| GKQ-700A(B) | 700 | Φ20X2 | 15 | 16.5 | 22.5 | 16.5 | Air | -40~60 |
| GKQ-800A(B) | 800 | Φ20X2 | 15 | 16.5 | 22.5 | 16.5 | Air | -40~60 |
| GKQ-900A(B) | 900 | Φ20X2 | 15 | 16.5 | 22.5 | 16.5 | Air | -40~60 |
| GKQ-1000A(B) | 1000 | Φ20X2 | 15 | 16.5 | 22.5 | 16.5 | Air | -40~60 |
| GKQ-1200A(B) | 1200 | Φ20X2 | 15 | 16.5 | 22.5 | 16.5 | Air | -40~60 |
| GKQ-1500A(B) | 1500 | Φ20X2 | 15 | 16.5 | 22.5 | 16.5 | Air | -40~60 |
| GKQ-2000A(B) | 2000 | Φ20X2 | 15 | 16.5 | 22.5 | 16.5 | Air | -40~60 |
