Technical Parameter
| Brand name | Zhuoyue |
| Place of origin | Hebei, China |
| Working medium | LNG / Ethane |
| Volume (m³) | 20m³-150 m³ |
| Working temperature(℃) | -162 ℃ |
| Design Pressure | 2.2 MPa |
| Max Working Pressure | 0.8-1.2 MPa |
| Inner material | S30408 |
| Outer material | Q345R |

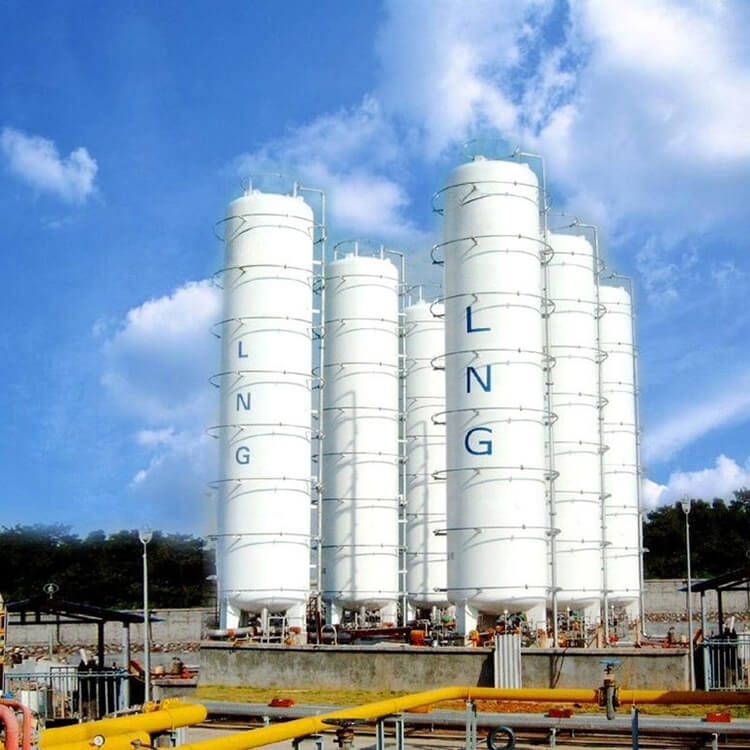

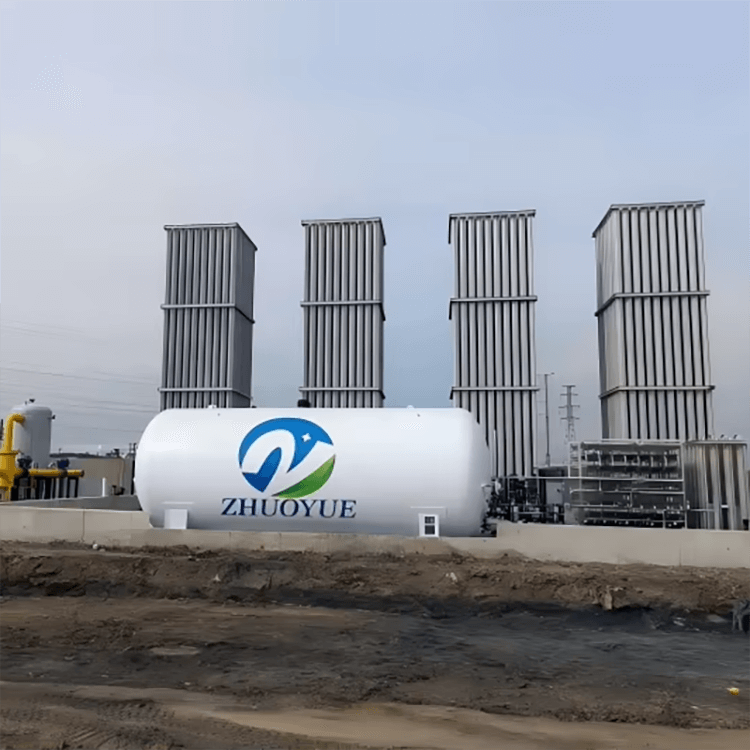

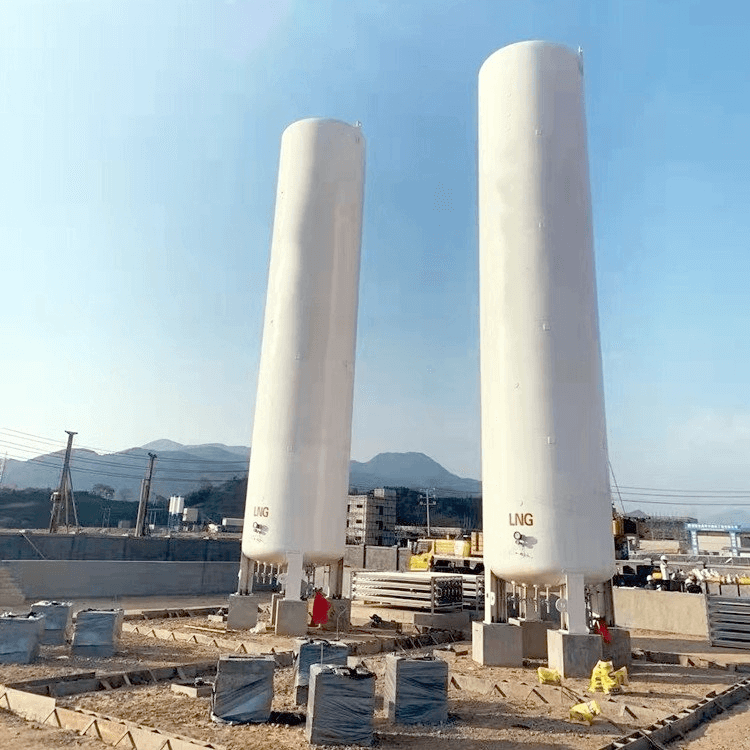

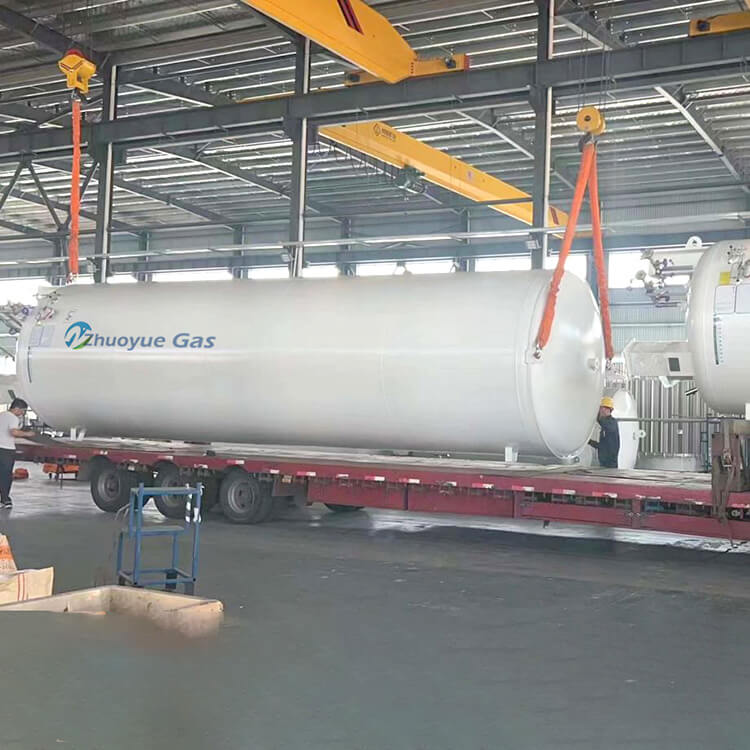

| Type | Horizontal / Vertical |
| Machinery test report | Provided |
| Video outgoing-inspection | Provided |
| Warranty | 1 Year |
Product Overview
Product Introduction
Engineered for the global energy transition, our Cryogenic LNG Storage Tanks deliver safe, efficient containment in extreme low-temperature environments. Utilizing premium materials and advanced multi-layer insulation, we minimize evaporation losses while ensuring structural integrity. Offering capacities from 20m³ to 150m³, we provide turnkey solutions (from design to O&M) that comply with international standards. Ideal for peak shaving, industrial fuel supply, and end-user applications.
Product features
●Premium Cryogenic Materials
Inner tanks constructed from Austenitic Stainless Steel (S30408), delivering exceptional toughness and durability at extreme cryogenic temperatures.
●Ultra-Low Boil-Off Rate
Features advanced vacuum powder or high-vacuum multi-layer insulation (MLI) to minimize heat ingress, significantly reducing BOG emissions and operational costs.
●Integrated Safety Systems
Equipped with double containment barriers, real-time leak detection, pressure relief valves, and automated fire suppression systems for comprehensive risk management.
●Flexible Configurations
Available in single or double containment structures, with options for modular skid-mounted or fixed installation to adapt to any site constraints.
●Turnkey Lifecycle Service
End-to-end support covering design, fabrication, installation, commissioning, and long-term maintenance to ensure seamless operation.
Product Specifications
| LNG Storage Tank Parameter Specifications | |||||
|---|---|---|---|---|---|
| Item No. | Model | Inner/Outer Vessel Size (mm) | Overall Dimensions | Weight (kg) | Remark |
| 1 | CFL-20/0.8(A)PS | DN2500×4450×5/5 | Φ2716×7216 | 7660 | Support |
| DN2700×5200×6/8 | |||||
| 2 | CFW-20/0.8(A)PS | DN2500×4450×5/5 | Φ2716×6826 | 7480 | Saddle Support |
| DN2700×5100×6/8 | |||||
| 3 | CFL-30/0.8(A)PS | DN2400×5750×5/5 | Φ2916×8624 | 9860 | Support |
| DN2900×6530×6/8 | |||||
| 4 | CFW-30/0.8(A)PS | DN2400×5750×5/5 | Φ2916×8264 | 9750 | Saddle Support |
| DN2900×6460×6/8 | |||||
| 5 | CFL-40/0.8(A)PS | DN2500×7240×5/6 | Φ3016×10172 | 12410 | Support |
| DN3000×8040×6/8 | |||||
| 6 | CFW-40/0.8(A)PS | DN2500×7240×5/6 | Φ3016×9882 | 12160 | Saddle Support |
| DN3000×7930×6/8 | |||||
| 7 | CFL-50/0.8(A)PS | DN2500×9270×5/6 | Φ3016×12202 | 14760 | Support |
| DN3000×10070×6/8 | |||||
| 8 | CFW-50/0.8(A)PS | DN2500×9270×5/6 | Φ3016×11812 | 14330 | Saddle Support |
| DN3000×9970×6/8 | |||||
| 9 | CFL-60/0.8(A)PS | DN2500×11310×5/6 | Φ3016×14242 | 17000 | Support |
| DN3000×12110×6/8 | |||||
| 10 | CFW-60/0.8(A)PS | DN2500×11310×5/6 | Φ3016×13842 | 16650 | Saddle Support |
| DN3000×12000×6/8 | |||||
| 11 | CFL-100/0.8(A)PS | DN3000×13070×7/7 | Φ3524×16300 | 28960 | Support |
| DN3500×14000×8/10/12 | |||||
| 12 | CFW-100/0.8(A)PS | DN3000×13070×6/7 | Φ3524×15936 | 27360 | Saddle Support |
| DN3500×13900×8/10 | |||||
| 13 | CFL-150/0.8(A)PS | DN3200×17500×7/7/8 | Φ3724×20800 | 42700 | Support |
| DN3700×18400×10/12 | |||||
| 14 | CFW-150/0.8(A)PS | DN3200×17500×7/7 | Φ3724×20500 | 41120 | Saddle Support |
| DN3700×18360×10/12 | |||||
| 15 | CFL-166.7/0.8(A)PS | DN3200×19580×7/7/8 | Φ3724×22887 | 46880 | Support |
| DN3700×20480×10/12 | |||||
| 16 | CFL-200/0.8(A)PS | DN3500×19540×8/8 | Φ4024×23080 | 57180 | Skirt Support |
| DN4000×20450×10/12/1 | |||||
| 17 | CFW-200/0.8(A)PS | DN3500×19540×7/8 | Φ4024×22680 | 52120 | Saddle Support |
| DN4000×20470×10/12 | |||||
| 18 | CFL-30/1.44(A)PS | DN2500×5200×8/8 | Φ3016×8132 | 11330 | Support |
| DN3000×6000×6/8 | |||||
| 19 | CFW-30/1.44(A)PS | DN2500×5200×8/8 | Φ3016×7822 | 11180 | Saddle Support |
| DN3000×5980×6/8 | |||||
| 20 | CFL-50/1.44(A)PS | DN2500×9270×8/8 | Φ3016×12202 | 16680 | Support |
| DN3000×10070×6/8 | |||||
| 21 | CFW-50/1.44(A)PS | DN2500×9270×8/8 | Φ3016×11892 | 16460 | Support |
| DN3000×10050×6/8 | |||||
| 22 | CFL-60/1.44(A)PS | DN2500×11310×8/8 | Φ3016×14242 | 19240 | Support |
| DN3000×12110×6/8 | |||||
| 23 | CFW-60/1.44(A)PS | DN2500×9270×8/8 | Φ3016×12182 | 19060 | Saddle Support |
| DN3000×10050×6/8 | |||||
Application Areas
Technical Support & Services
●Professional engineering team
Our professional engineering team will provide customized solutions, detailed drawings and high-quality gas equipment according to your project requirements.
●Pre-sales consultation service
We offer 7×24-hour pre-sales consultation service. Our team will provide professional advice on product selection, project planning and system design.
●After-sales service
Provide 24-hour responsive support and professional technical guidance for low-temperature gas storage and processing systems, ensuring their stable and safe operation.
●Customer operation training
Comprehensive on-site and online training covering equipment operation, safety procedures, daily maintenance, and emergency handling procedures.
FAQ
What types and capacities do you offer?
We manufacture vertical and horizontal LNG storage tanks with capacities ranging from 20m³ to 150m³. Larger capacities can also be customized to meet your specific project requirements.
Can you customize the tank design?
Yes. As a direct factory, we customize capacity, dimensions, design pressure, nozzle orientation, and cladding to fit your specific site conditions and P&ID requirements.
What is the delivery time for LNG storage tanks?
Standard model LNG storage tanks have a delivery time of 25–35 days. For customized products, the delivery period is 35–50 days depending on technical requirements. We can arrange fast production for urgent project needs.
Do you provide installation and after-sales support?
Yes. We supply full English documentation, offer on-site engineer supervision for commissioning, provide 24/7 remote technical support, and include a 12-month warranty.
Can you supply LNG storage tanks with complete accessory systems?
Yes. We can provide a full set of supporting systems including pressure regulating equipment, metering devices, vaporizers, safety valves, control cabinets and pipeline accessories. You can get a one-stop integrated LNG storage and supply solution from our factory.
How can I get a quick quote?
Please provide us with the required capacity, design pressure, project location, etc., as well as your preferred certification standard. We typically respond within 24 hours.
Gas Equipment Cases

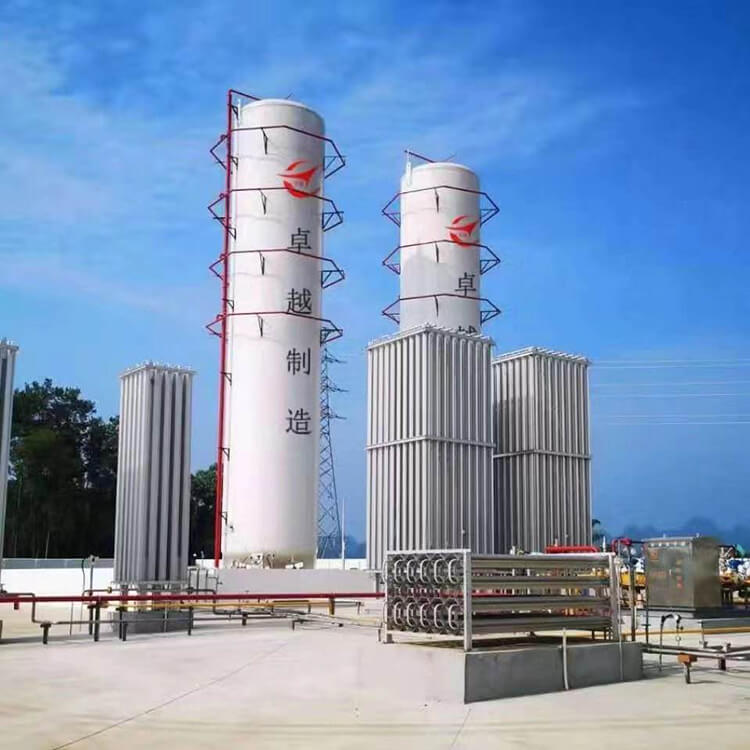

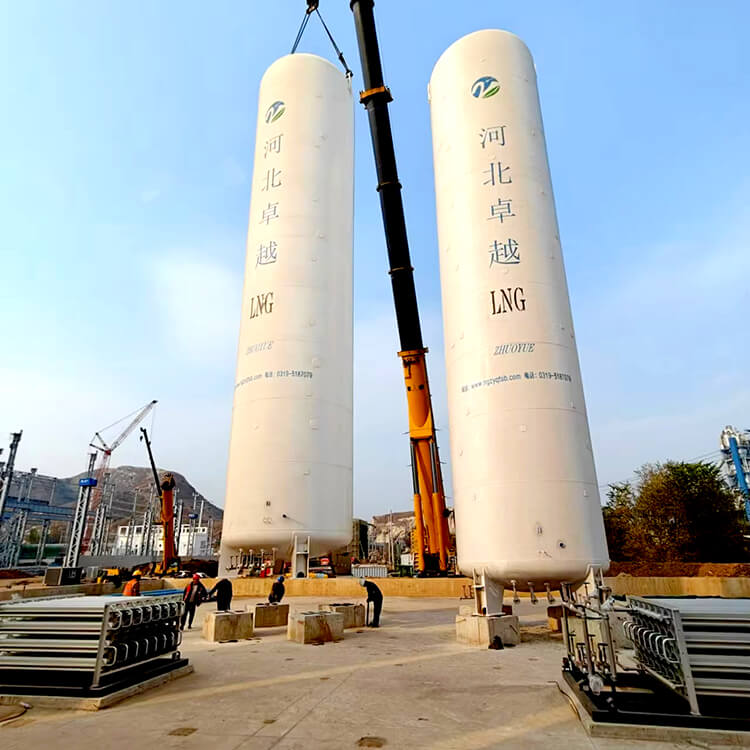

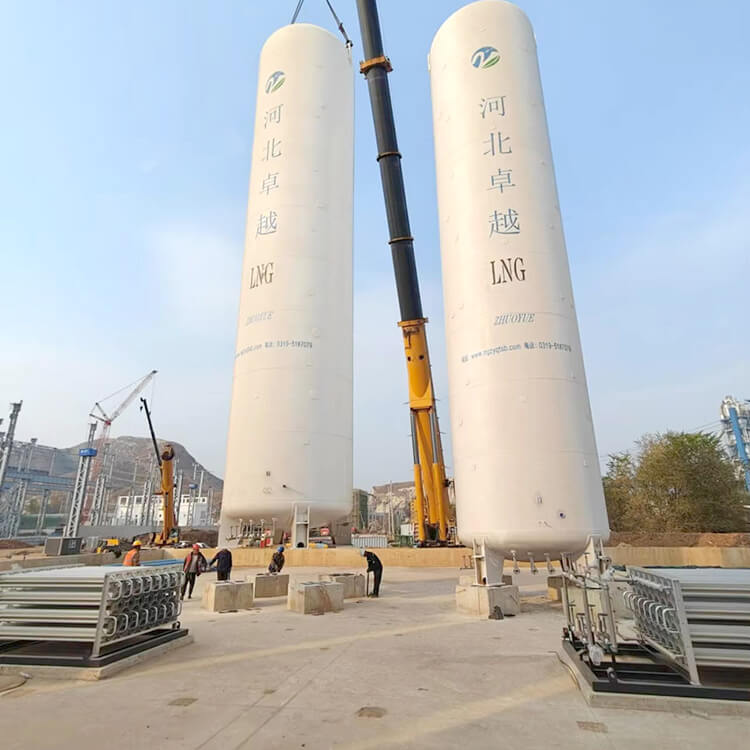

LNG Storage Tank Projects

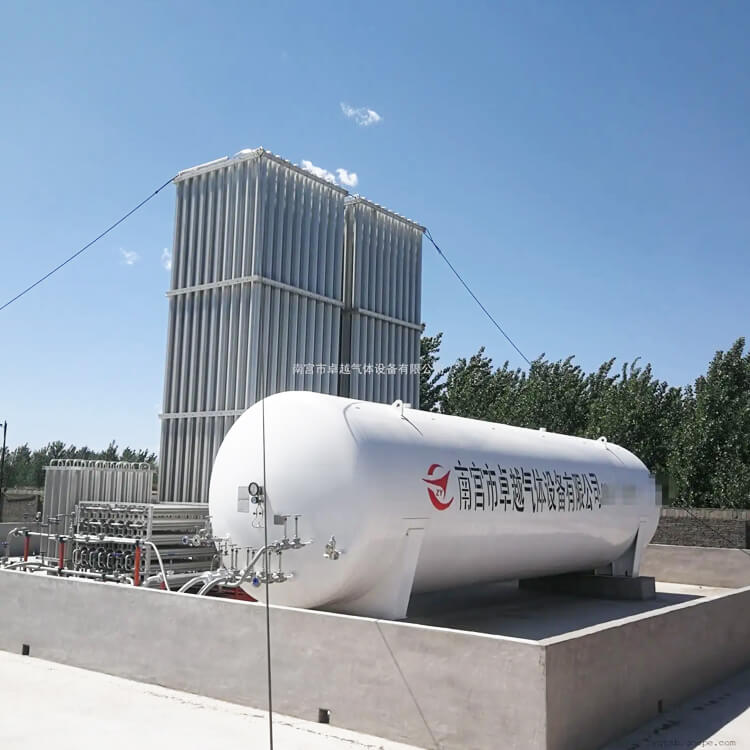

LNG Storage Tank Projects

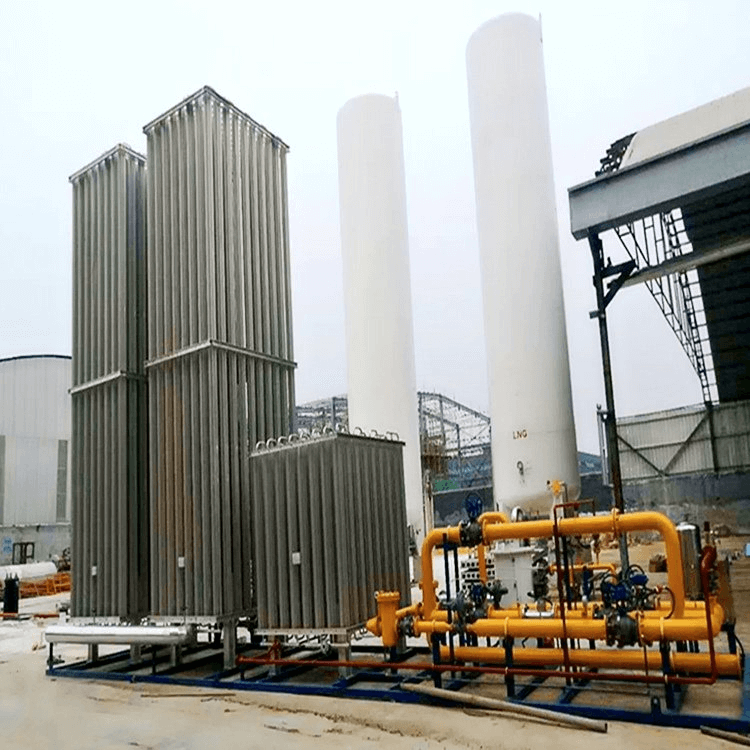

LNG Storage Tank Projects
