Technical Parameter
| Brand name | Zhuoyue |
| Place of origin | Hebei, China |
| Core components | Pressure Vessel |
| Capacity | 5-200 m³ |
| Max Working Pressure(MPa) | 0.8/1.6 MPa |
| Inner Cylinder Material (LO₂/LN₂/LAr Tanks) | S30408 |
| Outer cylinder material | Q345R |
| Working medium | liquid nitrogen, liquid oxgen, liquid argen |
| Warranty | 1 Year |
| Machinery test report | Provided |
| Video outgoing-inspection | Provided |
| Certification | CE, ISO |
| Standard | GB , ASME |

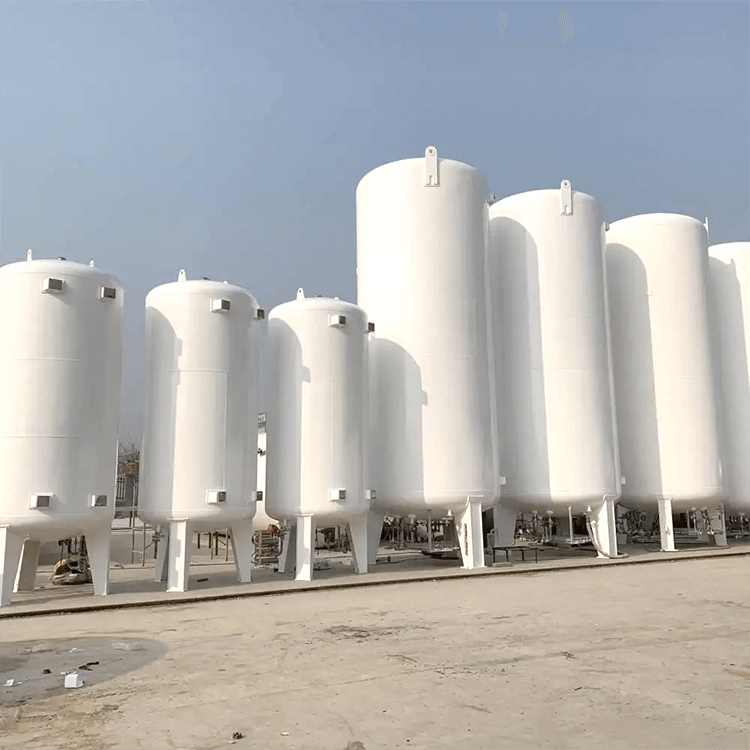

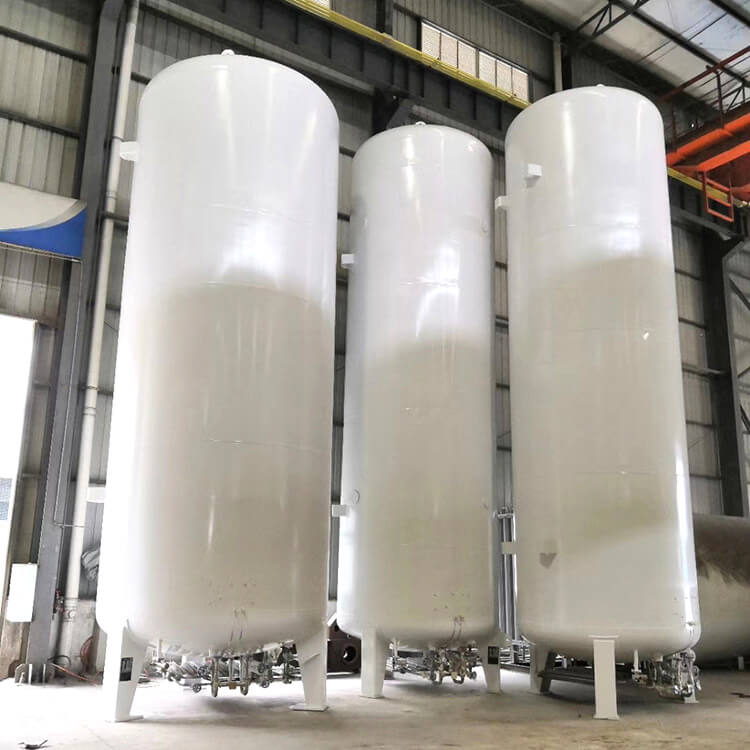

Product Overview
Product Introduction
Our cryogenic storage tanks are specialized equipment for safe storage of cryogenic liquids (LNG,,CO2,LN2,LO2,LAR) with excellent thermal insulation and pressure resistance, widely used in energy, chemical, medical industries worldwide.
Product features
●Superior insulation performance: Utilizing vacuum powder insulation technology, the daily evaporation rate is ≤ 0.3% (industry-leading);
●Safety guarantee: Equipped with pressure safety valve, liquid level gauge, and emergency cut-off device, and has passed SGS safety inspection;
●Export compatibility: Compliant with various countries’ customs import and export standards, and has been exported to 30+ countries;
●Cost optimization: Compact design, small floor space, and transportation cost reduced by 15%;
●Brand strength: 20+ years of R&D experience in low-temperature equipment, own factory + professional R&D team, supporting OEM/ODM;
Product Specifications

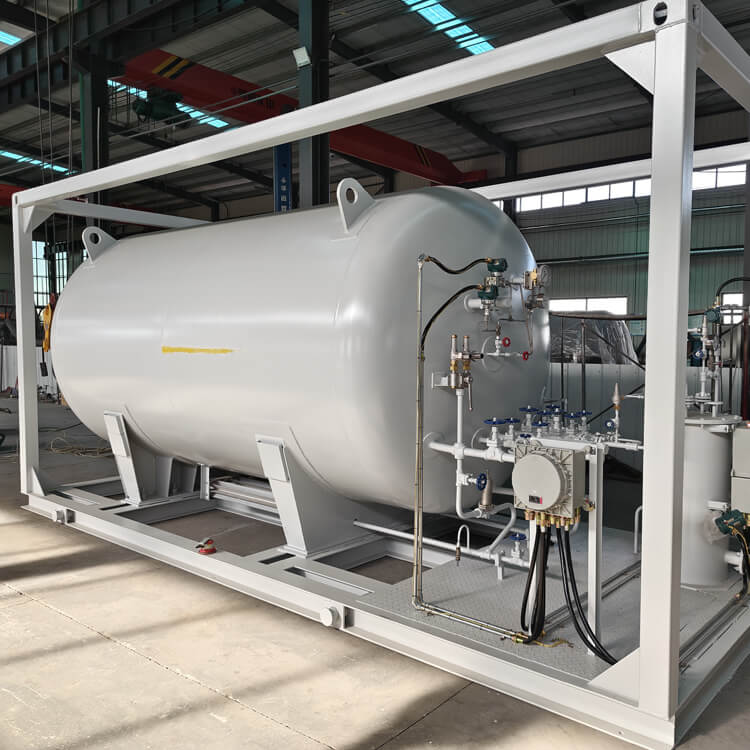

| Oxygen Nitrogen Argon (Container Series) Dimension Table | |||||
|---|---|---|---|---|---|
| Item No. | Model | Inner/Outer Size (mm) | Overall Size | Weight (Kg) | Remark |
| 1 | CFL-5/0.8(A) Standard | DN1400×2910×5/5 | Φ1916×5146 | 3560 | Support |
| DN1900×3470×6/8 | |||||
| 2 | CFL-5/1.6(A) Standard | DN1400×2910×8/9 | Φ1916×5146 | 4020 | Support |
| DN1700×3470×6/8 | |||||
| 13 | CFL-10/0.8(A)PS | DN1700×4020×5/5 | Φ2216×6632 | 5270 | Support |
| DN2200×4600×6/8 | |||||
| 14 | CFL-10/1.6(A)PS | DN1700×4020×6/7 | Φ2216×6632 | 5500 | Support |
| DN2200×4600×6/8 | |||||
| 15 | CFL-15/0.8(A)PS | DN1700×6340×5/5 | Φ2216×8952 | 7040 | Support |
| DN2200×6920×6/8 | |||||
| 16 | CFL-15/1.6(A)PS | DN1700×6340×7/7 | Φ2216×8952 | 7710 | Support |
| DN2200×6920×6/8 | |||||
| 17 | CFL-15/0.8(B)S | DN1700×5990×5/5 | Φ2216×8612 | 6800 | Support |
| DN2200×6580×6/8 | |||||
| 18 | CFL-15/1.6(B)PS | DN1700×5990×7/7 | Φ2216×8612 | 7420 | Support |
| DN2200×6580×6/8 | |||||
| 19 | CFL-20/0.8(A)PS | DN1700×8660×5/5 | Φ2216×11272 | 9050 | Support |
| DN2200×9240×6/8 | |||||
| 20 | CFL-20/1.6(A)PS | DN1700×8660×7/7 | Φ2216×11272 | 9880 | Support |
| DN2200×9240×6/8 | |||||
| 21 | CFL-20/0.8(B)PS | DN1700×8200×5/5 | Φ2216×10822 | 8710 | Support |
| DN2200×8780×6/8 | |||||
| 22 | CFL-20/1.6(B)PS | DN1700×8200×7/7 | Φ2216×10822 | 9500 | Support |
| DN2200×8780×6/8 | |||||
Application Areas
| Tank types | Application areas |
| Liquid Oxygen Storage Tank | Hospitals/Steel Plants/Glass Factories/New Energy Batteries/Gas Companies |
| Liquid Nitrogen Storage Tank | Coal Fire Extinguishing/Food Preservation |
| Liquid Argon Storage Tank | Shop Welding/Steel Structure Welding |
Technical Support & Services
●Professional engineering team
Our professional engineering team will provide customized solutions, detailed drawings and high-quality gas equipment according to your project requirements.
●Pre-sales consultation service
We offer 7×24-hour pre-sales consultation service. Our team will provide professional advice on product selection, project planning and system design.
●After-sales service
Provide 24-hour responsive support and professional technical guidance for low-temperature gas storage and processing systems, ensuring their stable and safe operation.
●Customer operation training
Comprehensive on-site and online training covering equipment operation, safety procedures, daily maintenance, and emergency handling procedures.
FAQ
Can you customize cryogenic storage tanks and gas equipment for our project?
Yes, we provide fully customized solutions including tank capacity, pressure rating, material, accessories, and piping design based on your site conditions and gas type requirements.
Do your products meet international standards?
Yes, our tanks and gas equipment comply with standards such as ASME, CE, GB, and ISO, and can be certified according to your country’s requirements.
What is the typical production lead time for a cryogenic storage tank?
Standard models usually take 20–35 days. Customized projects take 30–60 days depending on complexity and specifications.
Can you arrange international shipping?
Yes, we support FOB, CIF, CFR, and other shipping terms. We can arrange sea freight, land transportation, and full logistics to the destination port or site.
Is technical guidance available for self-installation?
We provide detailed installation drawings, operation manuals, and remote video guidance to support your team with self-installation.
What is the warranty period for your equipment?
We provide a 12–24 month warranty for our cryogenic tanks and gas equipment, depending on the product type and terms.

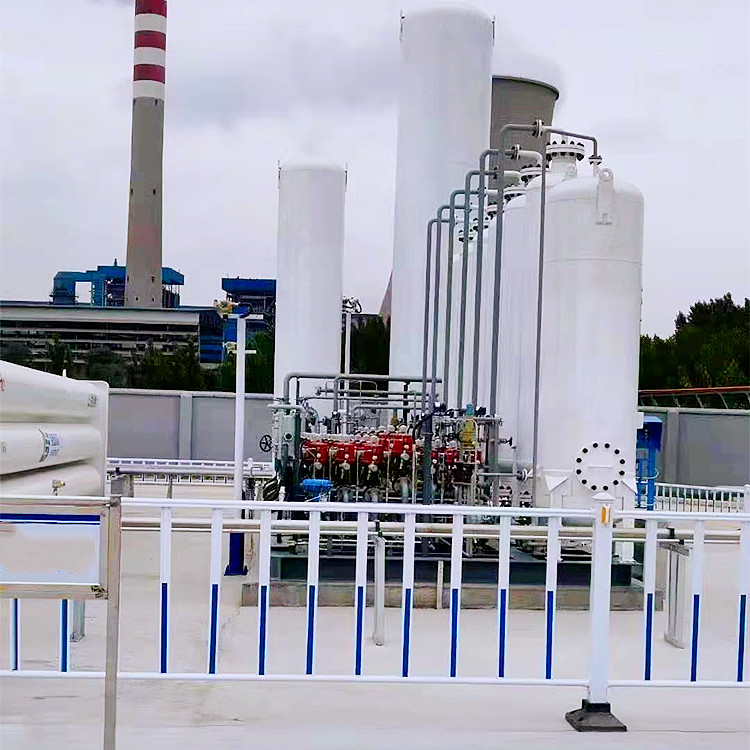

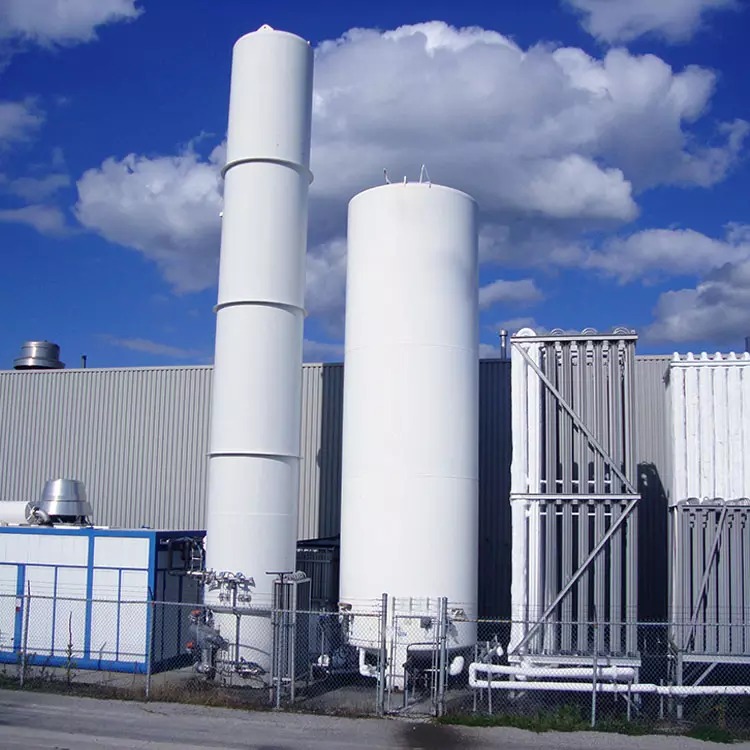

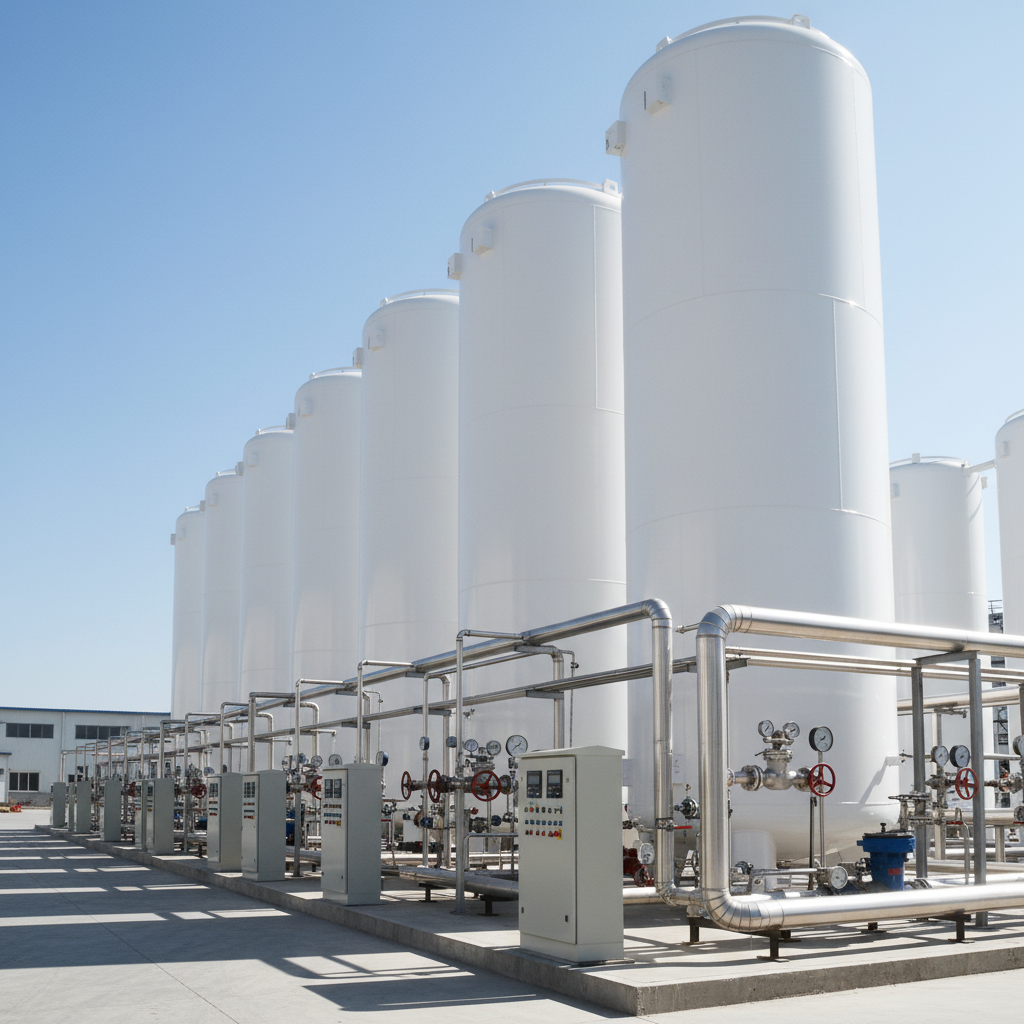

Gas Equipment Cases
Gas Equipment Cases
Gas Equipment Cases
Gas Equipment Cases
Gas Equipment Cases
