Technical Parameter
| Brand name | Zhuoyue |
| Place of origin | Hebei, China |
| Working medium | CNG |
| Volume (m³) | 0.3m³-1.2 m³ |
| Working temperature(℃) | -40 – 50 ℃ |
| Max Working Pressure | 20 MPa |
| Inner material | 16MnDR |
| Outer material | High-strength alloy steel, Carbon fiber, Carbon fiber composites |
| Application | Metallury, Chemical industry, Food, Fire,etc |
| Machinery test report | Provided |
| Video outgoing-inspection | Provided |
| Warranty | 1 Year |
Product Overview
Product Introduction

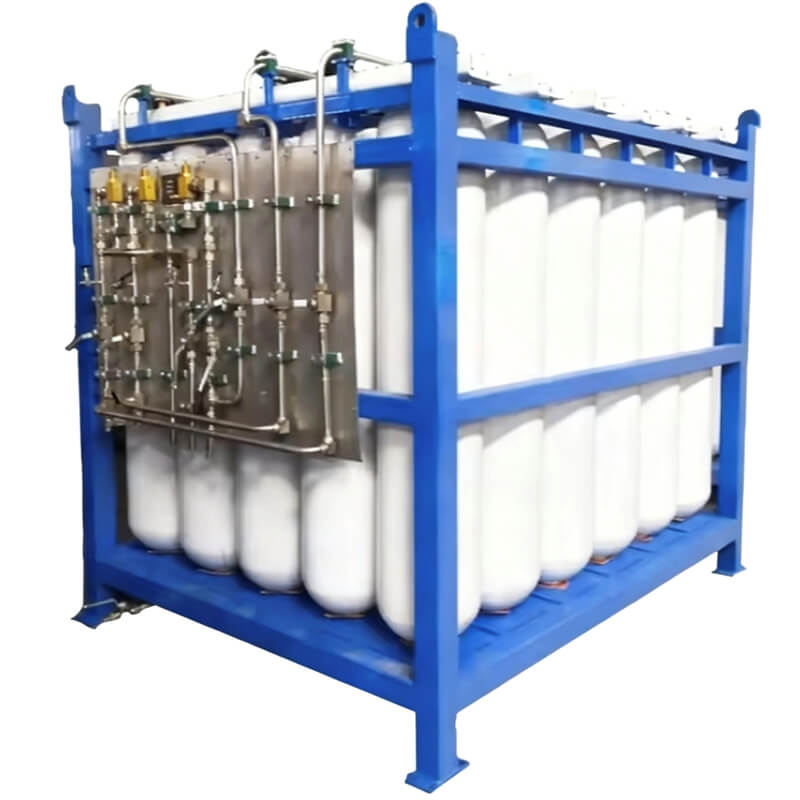

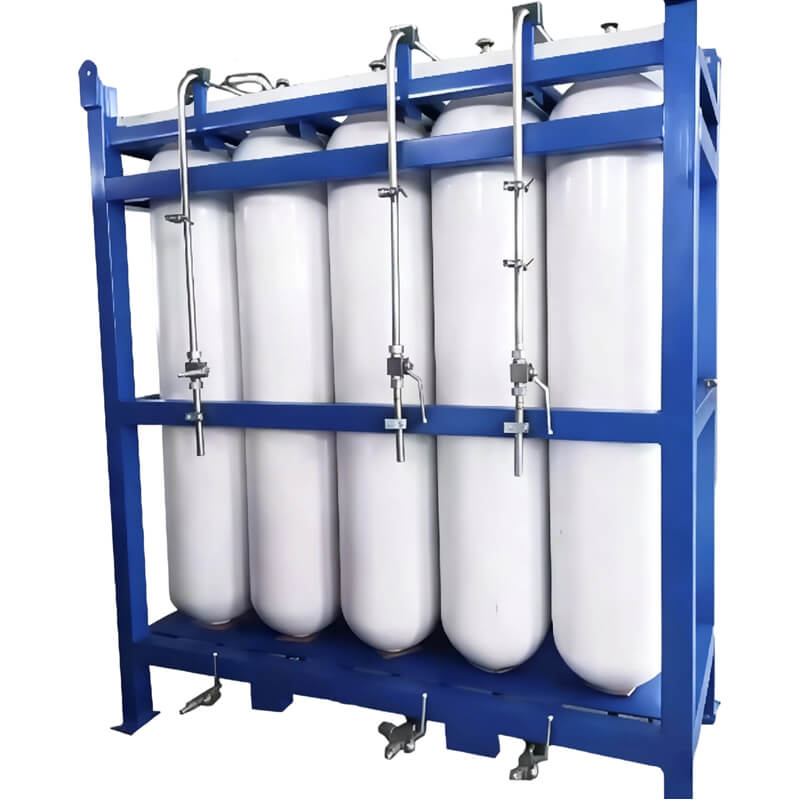

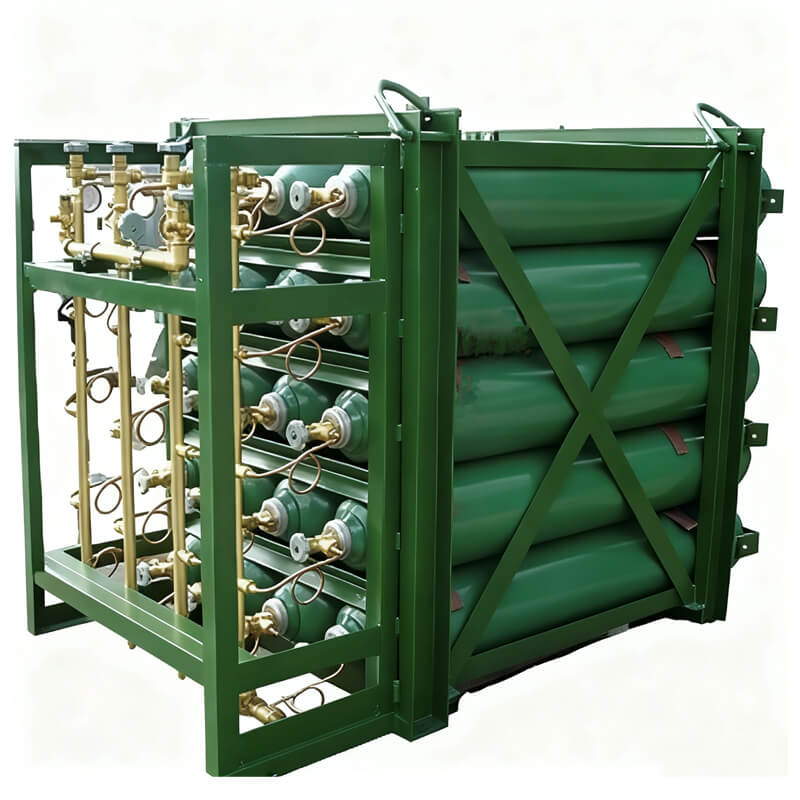

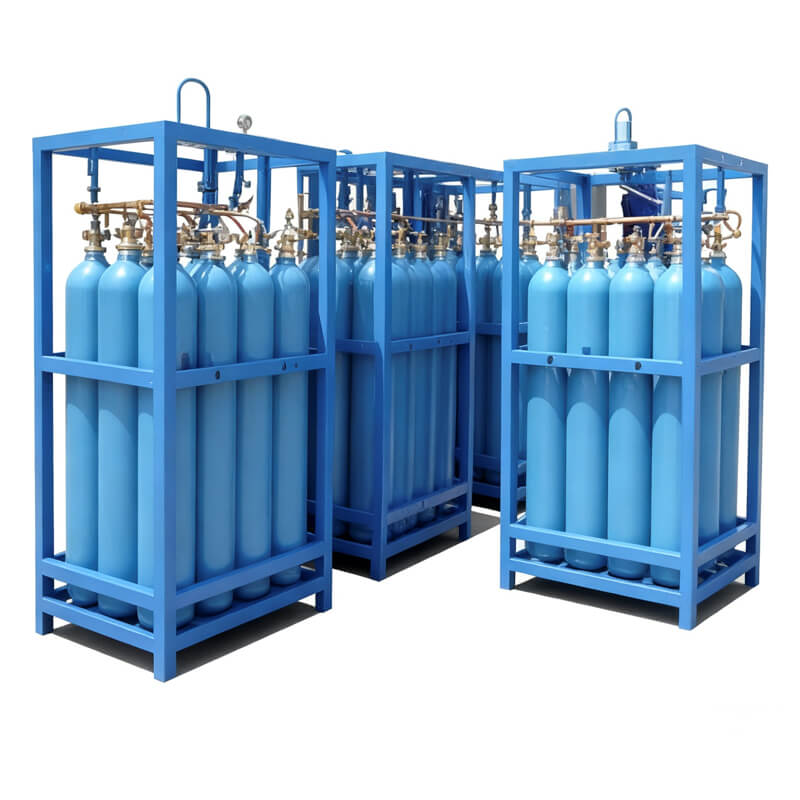

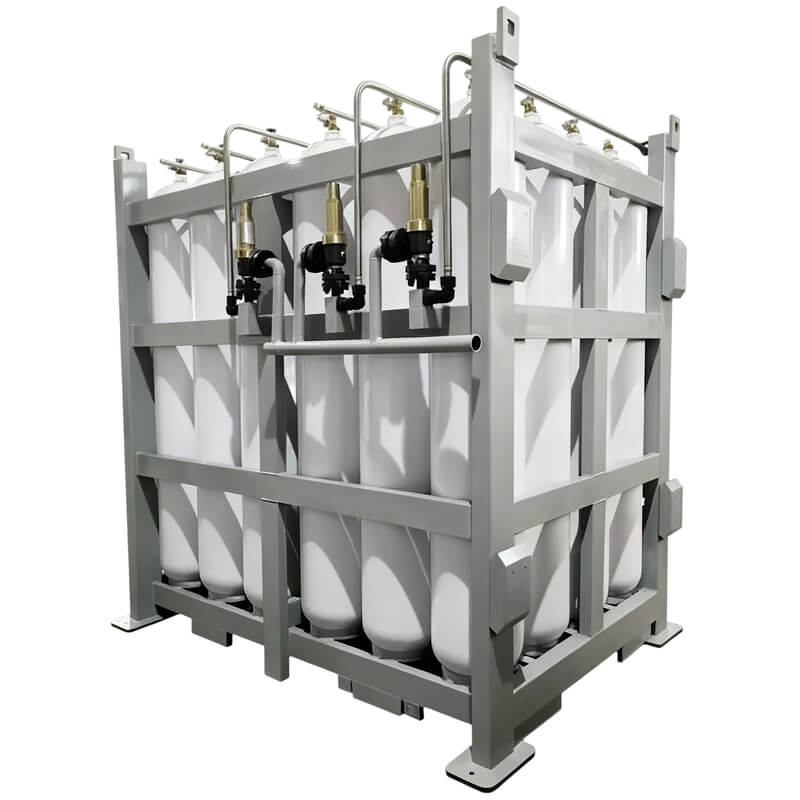

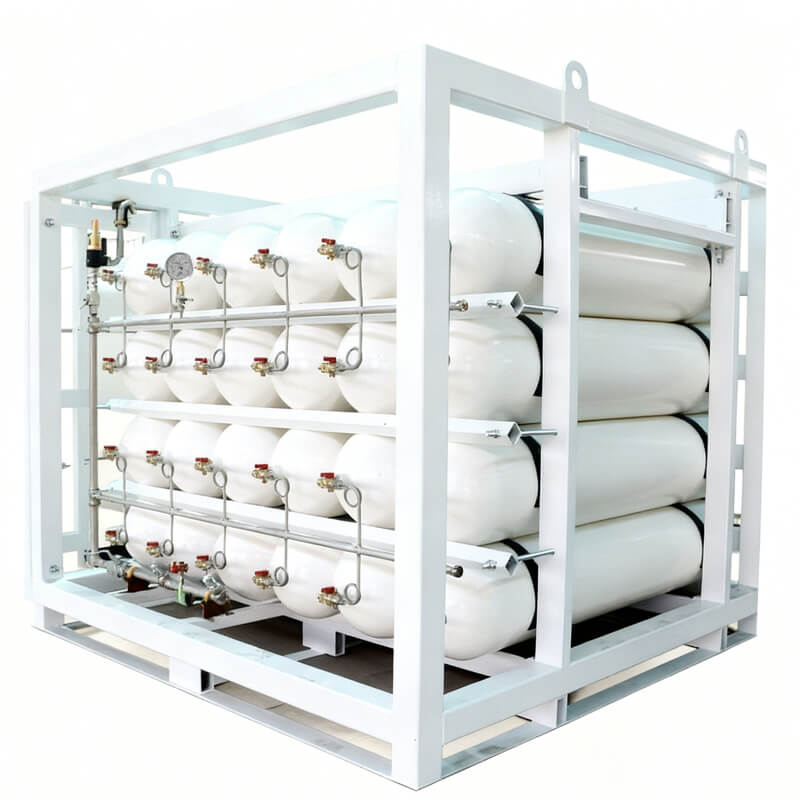

A CNG cylinder group (also called a CNG cascade storage system) is a modular assembly of multiple high-pressure compressed natural gas (CNG) cylinders, connected by standardized piping, control valves, and pressure regulators. Engineered for bulk CNG storage, it is a core component for CNG refueling stations, industrial energy operations, and bulk natural gas transport, designed to safely handle the standard 200–250 bar working pressure of CNG for high-demand applications.
Product features
●High Pressure & Large Capacity – Designed for 200–250 bar working pressure, offering high gas storage efficiency.
●Strong & Safe Design – Made of seamless . steel or composite material, with reliable valves and safety devices.
●Modular Structure – Multiple cylinders connected in parallel, easy to install, transport, and maintain.
●Long Service Life – Durable construction with anti-corrosion coating for long-term outdoor use.
●Wide Applications – Ideal for CNG refueling stations, industrial gas supply, and vehicle fueling systems.
Product Specifications
| CNG Cylinder Bundle | |||
|---|---|---|---|
| Model | Maximum evaporation (NM3/h) | Maximum working pressure (Mpa) | Empty weight (KG) |
| HT-CB15 | 600 | 16.5 | 650 |
| HT-CB20 | 2200 | 22 | 820 |
| HT-CB25 | 6600 | 27.5 | 950 |
| HT-CB30 | 13000 | 33 | 1150 |
| HT-CB35 | 17500 | 38.5 | 1300 |
Application Areas
| CNG Cylinder Group Application Areas | |
|---|---|
| No. | Application Area |
| 1 | CNG refueling stations |
| 2 | Industrial gas supply |
| 3 | Vehicle fueling systems |
| 4 | Resi & Commercial Gas Supply |
Certificate
FAQ
What sizes and capacities do your CNG cylinder groups offer?
We provide CNG cylinder groups with different cylinder quantities, volumes and working pressures. Custom specifications on total gas capacity, overall dimensions and mounting types are available to meet diverse project requirements.
How to choose the right CNG cylinder group for my project?
You need to confirm the required gas storage volume, working scenario (stationary or mobile), installation space and local safety codes. Our team can recommend the most suitable model based on your actual demands.
Can you customize CNG cylinder groups according to customer requirements?
Custom service is available. We can adjust cylinder number, total capacity, manifold layout, installation structure and accessories based on your actual project demands.
What mounting styles are available for CNG cylinder groups?
We offer vertical, horizontal and container-integrated mounting types. All structures are reinforced for stable placement and easy connection with pipelines.
Do you provide installation guidance and technical support?
We offer professional installation manuals, remote technical guidance and after-sales support to ensure correct installation and stable operation of the CNG cylinder group.
How to safely operate and maintain a CNG cylinder group?
Operate within the rated pressure range regularly. Conduct routine inspections on pipelines, valves and sealing parts, keep the assembly away from high temperature, open flame and heavy impact, and perform professional maintenance periodically.
About Zhuoyue
Factory Profile
Nangong Zhuoyue Gas Equipment CO.,LTD.,more than 20 years of production experience in the gas industry . We are specialized in Cryogenic storage tank ,Ambient air vaporizer ,Gas pressure regulating skid ,CNG refueling station ,LNG refueling station ,Regasification station.We have exported to Mexico,Turkey,Russia,Singapore, Malaysia ,Vietnam,Indonesia, Nigeria and etc.
we measure our success by the success of our customers .
