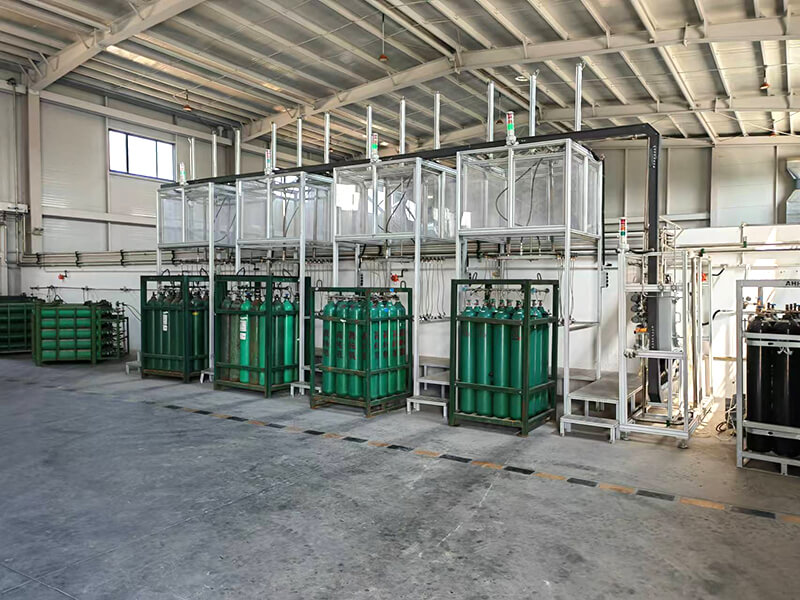

This basket-type gas cylinder filling system is a filling system composed of multiple individual cylinders, and it can complete the filling operation in one go. By fixing the cylinders in a sturdy metal basket or “basket” (commonly referred to as a tray or packaging), this system enables operators to simultaneously carry out filling, transportation, and storage for the entire batch of cylinders.

How Basket-Style Cylinder Filling Manifold Works

Unlike the traditional method where each gas cylinder is filled separately, the basket-type filling manifold groups a set of gas cylinders into a dedicated basket. Then, using the assembly system at the top of this group of gas tanks (which includes the main pipe, valves and protective covers or frames for the wires), the tanks are filled in a single batch. This thereby improves the efficiency of canning.

Key Benefits

Save a lot of time: Operators no longer need to handle and connect dozens of individual cylinders one by one; instead, they can handle the entire box of cylinders at once.

Enhanced Safety: The cylinders are fixed in a sturdy vertical support to prevent any accidental movement, tipping or rolling during inflation or transportation.

Simplified transportation:After the gas cylinders are filled, the entire basket (containing 12 to 18 cylinders) can be directly unloaded by a forklift, significantly reducing the labor costs for handling and loading/unloading.

Precision and Control: These manifolds are frequently paired with automated controls, digital scales, and pressure gauges to eliminate overfilling, prevent product waste, and ensure a precise gas mix for each individual cylinder.

Common Applications

These complex systems are very common in manufacturing and processing industries, healthcare and professional gas filling sectors, among others, including the production of large quantities of gases. They are widely used for:

Industrial gases (oxygen, nitrogen, argon, helium).

Medical gases supplied to hospitals and emergency rescue departments.

Gas mix packs, which are used as a safer and more compact alternative to heavy bulk deliveries on-site.

Nangong Zhuoyue Gas Equipment has professional engineers who can customize gas solutions according to your needs. If you have any further questions, please feel free to contact us.
