🟨Product Overview
Nangong Zhuoyue LNG Storage Tanks Professional Solutions for Energy Storage
1. Product Features

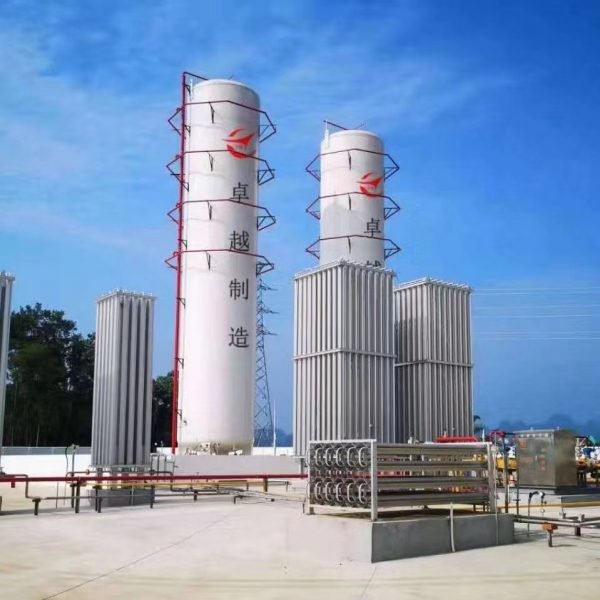

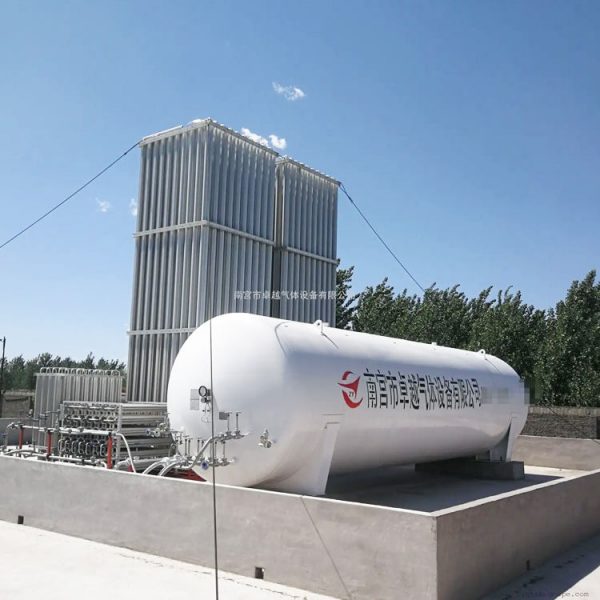

Our LNG storage tanks are available in vertical and horizontal designs, featuring vacuum powder insulation to ensure ultra-low thermal conductivity. With an effective volume range of 20–150 m³, they are ideal for industrial gas storage, energy stations, and transportation applications.
2. Technical Specifications
Parameter：Specification
Inner Material： Austenitic stainless steel S30408, resistant to -196℃
Outer Shell： Carbon steel/low-alloy steel (Q345R)
Insulation ： Vacuum powder
3. Core Advantages
Durability: S30408 inner tank ensures corrosion resistance and extreme low-temperature performance.
Safety: Q345R outer shell meets ASME and PED pressure vessel standards.
Customization: Adaptable to client-specific requirements (e.g., pressure, capacity).
4. Global Applications
Widely used in:

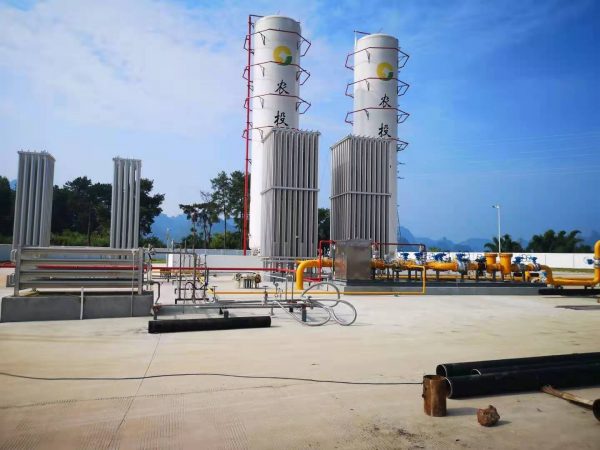

LNG refueling stations
Industrial gas plants
5. Why Choose Us?
Certified: ISO 9001, CE certified.
Expertise: 20+ years in cryogenic storage solutions.
Support: Full lifecycle service from design to installation.
🟨Specification
| Cryogenic liquid LNG/Oxygen / Nitrogen /Argon Storage Tank | ||||
| NO. | Model | Dimension (mm) | Net Weight (KG) | Type |
| 1 | CFL-5/0.8 | Φ1916*5172 | 3930 | Vertical |
| 2 | CFL-10/0.8 | Φ2316*5981 | 5840 | |
| 3 | CFL-15/0.8 | Φ2316*8035 | 7900 | |
| 4 | CFL-20/0.8 | Φ2716*7377 | 9250 | |
| 5 | CFL-30/0.8 | Φ2920*8904 | 12600 | |
| 6 | CFL-40/0.8 | Φ2920*11290 | 16000 | |
| 7 | CFL-50/0.8 | Φ3220*11304 | 18700 | |
| 8 | CFL-80/0.8 | Φ3420*14920 | 31200 | |
| 9 | CFL-100/0.8 | Φ3420*18102 | 37200 | |
| 10 | CFL-150/0.8 | Φ3724*22128 | 53200 | |
| 11 | CFL-200/0.8 | Φ4024*24085 | 69400 | |
| 12 | CFL-50/1.6 | Φ3220*11304 | 25600 | |
| 13 | CFL-100/1.6 | Φ3520*17276 | 46300 | |
🟨Company Profile
Nangong Zhuoyue Gas Equipment CO.,LTD. ,more than 20 years of production experience in the gas industry . We are specialized in ambient air vaporizer ,eletrice vaporizer ,PRMS skid and cryogenic tank . We have exported to Mexico,Turkey,Russia,Singapore, Malaysia ,Vietnam,Indonesia, Nigeria and etc. we measure our success by the success of our customers .
🟨Zhuoyue Gas Workshop

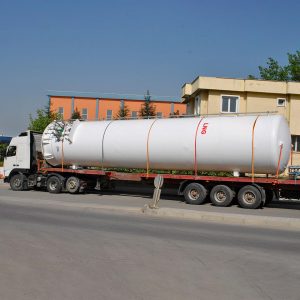

🟨Packing & Delivery
