Industrial Cryogenic Liquid Storage Tank Comprehensive Solution: Global Industrial Safety Storage Selection and Implementation Guide
In actual production scenarios of industrial gases, fine chemicals, biopharmaceuticals, and energy storage, industrial cryogenic liquid storage tanks are the core special equipment that ensure the stable storage of liquid oxygen, liquid nitrogen, liquid argon, LNG, etc. Many overseas purchasing customers often encounter problems such as unsatisfactory insulation performance, non-compliance with local special equipment access regulations, and insufficient customization adaptability during the project implementation stage. This not only increases the medium loss cost for long-term operation but also poses considerable safety risks. As a manufacturing service provider specializing in cryogenic gas equipment, we have combined project implementation experience to develop a comprehensive solution for cryogenic liquid storage tanks covering selection, compliance, and operation management throughout the entire chain. This helps global customers solve the core pain points of the cryogenic storage process in one go.
Ⅰ. Core Structure and Insulation Technology Customization Plan: Adapt to All Operating Conditions
1. Double-layer High Vacuum Insulation Structure Design: All of our products adopt a double-layer split structure. The inner liner uses food-grade/medical-grade stainless steel material, and the outer layer uses high-strength carbon steel as a protective layer. The middle layer is filled with 30 or more layers of aluminum foil insulation paper and reflective sand, processed through a 72-hour continuous high-vacuum extraction process. As a result, the static evaporation rate is far lower than the industry’s conventional standards. For example, for a 100m³ liquid nitrogen storage tank, the daily evaporation rate can be controlled within 0.2%, significantly reducing the natural evaporation loss of the cryogenic medium during storage and saving customers tens of thousands of yuan in medium procurement costs annually.

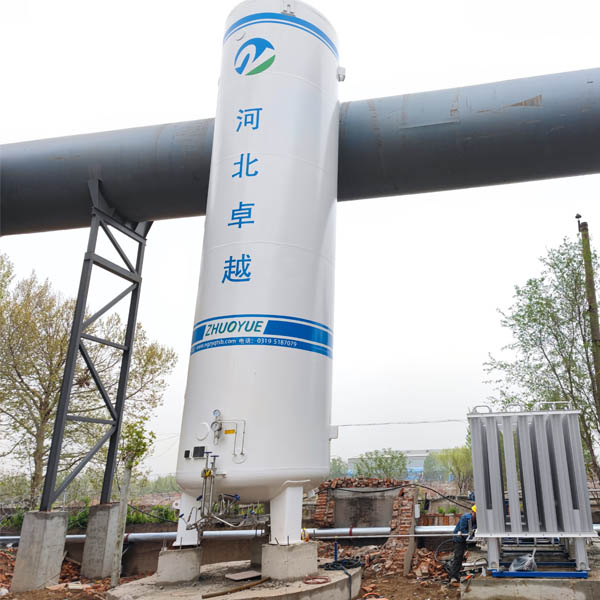

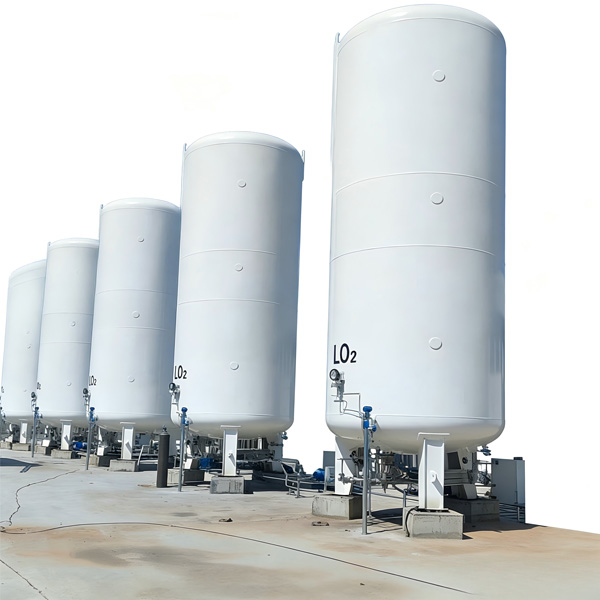

2. Full Volume and Structural Form Coverage: According to different customer site conditions, we also provide vertical and horizontal structural options. The volume supports a full range of customization from 1m³ to 300m³. Small volume models can be directly placed inside the workshop as a production supporting gas source station, while large volume models can be deployed outdoors as a regional centralized gas supply center. We can also adjust the inner liner wall thickness and sealing material according to the special properties of the stored medium. For example, in the storage scenario of electronic-grade high-purity argon, we will add a mirror-polished process to the inner wall of the liner to avoid medium contamination by metal impurities; for the storage scenario of liquid carbon dioxide, we will optimize the pressure rating of the inner liner to prevent dry ice blockage problems in the cryogenic medium.
3.Extreme Environment Adaptation Optimization: For cold regions such as Northern Europe and Canada, we will add a thicker anti-freezing insulation layer to the tank’s outer layer and provide a pipeline electric heating system to prevent cryogenic accessories from malfunctioning at -40℃ or below. For regions with high temperatures and high humidity such as the Middle East and Southeast Asia, we will add anti-corrosion and sun protection coatings to the outer layer, and optimize the sealing structure of the vacuum layer to prevent the loss of vacuum degree due to high temperature and high humidity, making the design service life of the tank more stable.
Ⅱ. Global Regional Market Compliance Adaptation Plan: Avoid Project Access Risks
For the compliance requirements of different regional markets overseas, our solution has done a comprehensive qualification adaptation in advance, helping customers avoid the cumbersome process of access review and avoid project delays due to non-compliance with qualifications.
1. North American Market ASME Standard Adaptation: For the US and Canadian markets, all products strictly follow the ASME VIII volume special equipment design and manufacturing standards, with complete material traceability reports and welding inspection reports, fully meeting the hard requirements of local engineering acceptance.
2. EU and Emerging Market Multi-Compliance Coverage: For regions such as the EU and Australia, products can be pre-certified with CE PED safety standards according to customer requirements. At the same time, bilingual operation manuals and safety warning signs are provided to comply with local localization compliance rules. For countries like Russia and Kazakhstan in the Commonwealth of Independent States, we can offer EAC Sea Alliance certification. For regions with concentrated infrastructure projects such as Southeast Asia and South America, we can also provide all the technical documents required for local special equipment registration, significantly shortening the project implementation cycle for customers.
3. Full Series of Safety Accessories: Unlike some suppliers in the industry who only provide bare tanks, our solution also includes a complete set of safety accessories such as high-precision magnetic level gauges, high and low liquid level alarm systems, emergency shut-off valves, and dual safety pressure relief devices. All accessories are selected from international Well-known brand or models that comply with local safety standards， fully matching the pressure vessel safety management norms of most countries worldwide. From the factory stage， we ensure the first step of safety is well controlled.
III. Full Lifecycle Operation and Maintenance Guarantee Solution： Reducing Long-Term Operation Risks
In the lifecycle operation and safety guarantee phase， our solution also covers all the needs of customers from installation and commissioning to long-term use. It breaks through the industry pain point of traditional cryogenic equipment suppliers who “focus on delivery but neglect service”.
1. Delivery Stage On-site Support： After the equipment is delivered， we will arrange engineers with over 5 years of overseas project service experience to provide remote or on-site guidance to help the installation team complete key processes such as tank positioning， secondary vacuum pumping in the interlayer， and pressure testing. At the same time， we will conduct specialized training for the operation team to quickly master the full process norms of filling， pressurization， and liquid discharge for cryogenic storage tanks， avoiding risks such as abnormal pressure and medium leakage due to incorrect operation.
2. Long-Term Customized Maintenance Services： During the daily use stage， we will establish an exclusive equipment maintenance electronic file for each customer. We will regularly remind users through email， WhatsApp， etc. to carry out routine maintenance tasks such as vacuum degree detection， liquid level gauge calibration， and safety accessory verification. At the same time， we will provide multi-language technical response channels (English， Spanish， Arabic， etc.) 24/7， even if customers encounter sudden operational questions in remote project sites， they can receive professional technical guidance.
3. Extended System Integration Services： For customers with special requirements， we can also customize a matching cryogenic medium transportation， gasification pressure regulation， and gas mixture integrated system to make the operation efficiency of the entire cryogenic storage link higher. It is suitable for production rhythms of different industries such as steel metallurgy， food quick freezing， biomedicine， and new energy hydrogenation， helping customers achieve full-process automated control from the entry of cryogenic medium to the terminal gas supply.
Our industrial cryogenic liquid storage tank solutions have been implemented in industrial projects in 30+ countries and regions around the world. From the liquid nitrogen rapid freezing storage needs of small food processing factories in Southeast Asia， to the LNG storage and distribution station construction of large oil and gas projects in the Middle East， to the high-purity liquid oxygen storage scenarios of European biopharmaceutical enterprises， they have all been unanimously recognized by customers. We always believe that a good cryogenic storage equipment is not a standardized assembly line product， but a complete service system tailored to the customer’s site conditions， medium properties， and local regulations. This is also the core reason why we have accumulated a good reputation in the global cryogenic equipment market. If your project is facing difficulties in selecting an industrial cryogenic liquid storage solution, you can contact the technical team of Zhuoyue Gas Equipment at any time. We will provide you with a customized solution that perfectly suits the actual working conditions of your project within 24 hours. This solution will help you achieve long-term, stable, safe and efficient storage of cryogenic media while controlling the overall cost of ownership.
