In the current era of rapid expansion of global vehicle natural gas refueling networks, the core storage equipment of CNG filling stations directly determines the operational efficiency, safety level, and long-term investment return of the stations. As a professional manufacturer specializing in low-temperature gases and high-pressure storage equipment, we have developed standardized and modularized CNG Storage Cascade System (CNG Storage Cascade System) and Skid-Mounted CNG Cylinder Bundle (Skid-mounted CNG Cylinder Bundle) solutions to meet the different scale construction needs of the overseas market. These solutions help filling station operators achieve significant optimization in three core dimensions: compliance, installation speed, and operation and maintenance costs.
I. The core working logic of the CNG gas storage classification system and the value of the stations
Unlike the traditional single-pressure gas storage method, the CNG Storage Cascade System adopts a three-level or multi-level pressure gradient design, dividing the gas storage tank groups into three zones: high pressure, medium pressure, and low pressure. During the refueling operation, the control system will prioritize the use of the low-pressure group to fill empty vehicle gas cylinders. Once the pressure is balanced, it will automatically switch to the medium-pressure group, and finally use the high-pressure group to complete the replenishment of the remaining gas volume. The most direct advantage of this hierarchical design is that it significantly reduces the frequency of compressor startups and shutdowns – in the past, the direct method of relying on the compressor to fill the vehicle gas cylinders required continuous high-load operation of the compressor. However, the hierarchical gas storage system can store the compressed natural gas according to the pressure gradient in advance. During the refueling process, the compressor only needs to replenish the remaining amount consumed by the system, and the overall energy consumption can be reduced by 18% to 25%.
For urban core gas refueling stations in cities where the daily refueling volume exceeds 500 vehicles, this system can also effectively shorten the refueling waiting time for individual vehicles. The refueling time for a single nozzle can be reduced from 2 minutes to within 40 seconds, and the congestion at the stations during peak hours can be significantly alleviated. At the same time, the hierarchical gas storage system keeps the pressure fluctuations of the system within a stable range, which not only extends the service life of the compressor’s seals but also reduces the impact of high-pressure gas flow on the vehicle-mounted gas cylinders, indirectly enhancing the safety of the refueling process.
II. The modular design advantages of the skid-mounted CNG gas cylinder group

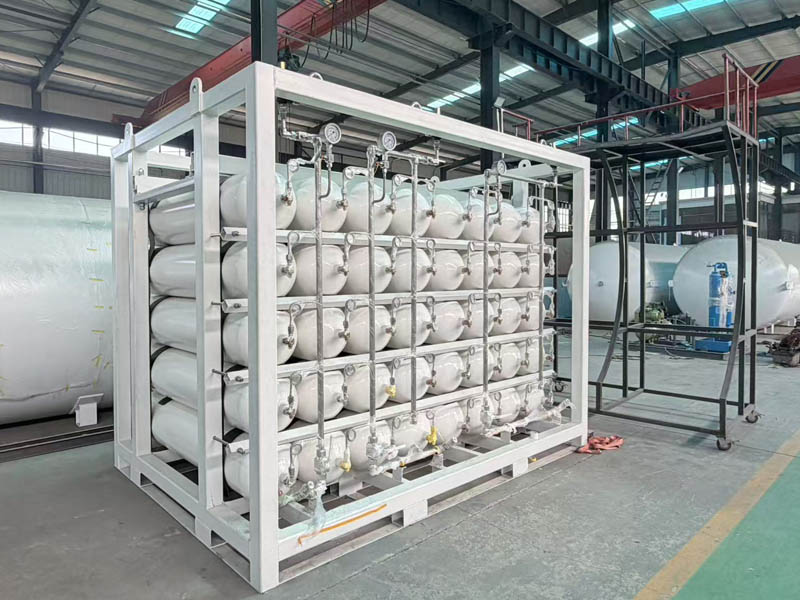

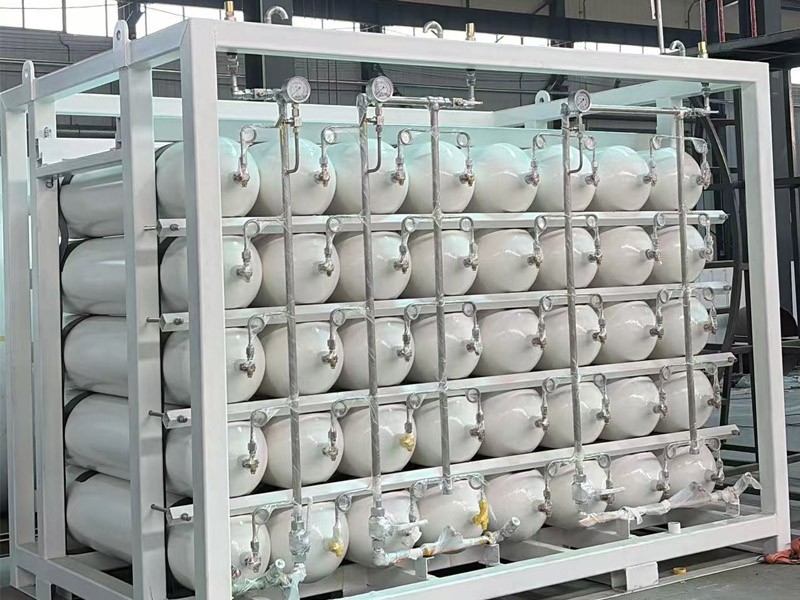

Traditional CNG storage cylinder groups usually require completing various procedures such as cylinder hoisting, pipeline welding, and pressure testing on-site one by one. This not only prolongs the construction period but also imposes extremely high technical requirements on the on-site installation team. We have introduced the Skid-Mounted CNG Cylinder Bundle, which adopts a fully prefabricated skid-mounted design. All the cylinders, high-pressure pipelines, safety valves, pressure sensors are assembled, welded, and undergo a 1.5 times design pressure water pressure test in the factory. Only after passing the third-party non-destructive testing will it be packaged and shipped.
The most direct benefit this design brings to overseas customers is the improvement in installation efficiency: On-site, only the connection of the inlet and outlet pipelines and power-on debugging need to be completed, and the entire equipment can be put into trial operation within 72 hours. Compared with the traditional construction mode, it shortens the on-site construction time by more than 70%. At the same time, the skid-mounted base adopts an overall anti-corrosion sandblasting process, which is suitable for different harsh working conditions such as high salt spray in coastal areas and high sand dust in the northwest. The outdoor maintenance-free service life of the equipment can reach more than 15 years. According to the capacity requirements of different sites, we can provide standardized selections ranging from 2 cubic to 12 cubic water volume, and also support customizing the arrangement of gas cylinders based on the reserved site size of the customer’s station to maximize the utilization of limited space.
III. Safety and Compliance Configurations for Market Adaptation in Overseas Markets
For gas filling station projects in different countries and regions around the world, our complete CNG storage system strictly complies with international industry standards such as ISO 11439 and ASME BPVC. All high-pressure gas cylinders have the main market certification documents such as PED and DOSH. The system’s standard multi-level safety protection system includes dual overpressure protection of rupture discs and safety valves. Even in extreme environments where pressure abnormalities occur, it can quickly release the pressure through the directional pressure relief channel to avoid the spread of risks.
Considering that the operational staff of gas filling stations in many developing countries have limited professional skills, we have integrated a visual local control panel into the skid-mounted system, which can display real-time data on the pressure and temperature of the three gas storage units. In case of pipeline leakage, abnormal pressure, or other faults, the system will automatically trigger audible and visual alarms and simultaneously cut off the upstream gas supply source. All electrical components have reached the Exd II CT4 explosion-proof level, fully meeting the usage standards for flammable and explosive areas such as gas filling stations, helping customers easily pass the local safety supervision and fire protection acceptance inspections.
IV. Ongoing Operations and After-sales Support throughout the Entire Lifecycle
After purchasing CNG storage equipment, many overseas customers often encounter problems such as difficulty in purchasing spare parts and slow on-site debugging. We provide each CNG Storage Cascade System with a complete spare parts manual and operation and maintenance videos. Customers can independently complete routine maintenance tasks such as valve calibration and filter element replacement without relying on the original factory engineers. For projects located far away, we can offer remote technical support within 72 hours. Through the reserved data interface of the system, we can remotely check the operating parameters and solve 90% of common faults online.
For sites that have been in operation for more than 5 years, we can also provide system upgrade services. We can add an intelligent pressure regulation module on top of the existing skid-mounted equipment, connect it to the station control management system of the gas filling station, and achieve automatic optimization and scheduling of the storage gas pressure, thereby further reducing the long-term operating energy consumption of the site.
From urban gas filling stations in Southeast Asian cities to energy supply sites in mining areas in Africa, Zhuoyue Gas Equipment CNG graded storage and skid-mounted gas cylinder group solution has been verified for reliability in over 30 countries around the world. If you are planning to expand or build new CNG filling stations, this cost-effective, efficient and safe storage solution will be your core choice for enhancing the long-term profitability of the stations.
