Key Highlights
Low Energy Consumption
44 kW total power for 1000Nm³/h output; hydraulic compressor saves operating electricity.
Dual‑system Redundancy
Compressor dual independent system, mutual backup, avoid full‑site shutdown.
Oil‑Free Compression
Zero oil‑contamination risk, protects vehicle engines & pipelines.
Outdoor Unattended Operation
Integrated rain‑proof & noise‑reduction cabinet, PLC full‑auto control.
Product Scope
| NO. | Products | Model / Technical Specifications | Qty. | Unit | Brand |
|---|---|---|---|---|---|
| 1 | CNG Unloading Post | Rated Working Pressure: 20 MPa Max Working Pressure: 25 MPa |
1 | SET | Zhuoyue |
| 2 | CNG Daughter Station Compressor | Suction Pressure:3‑20 MPa Discharge Pressure: ≤25 MPa Average Capacity:1000 Nm³/h |
1 | SET | Zhuoyue |
| 3 | CNG Dispenser | Three‑line Dual‑Nozzle Dispenser Rated Working Pressure:20 MPa Max Working Pressure:25 MPa |
1 | SET | Zhuoyue |
Technical Data
| NO. | Item | Specification |
|---|---|---|
| 1 | Compression Medium | Natural Gas (Complying with GB18047-2000 “Natural Gas for Vehicles”) |
| 2 | Suction Pressure | 3-20MPa |
| 3 | Discharge Pressure | ≤25MPa |
| 4 | Average Flow Rate | 1000Nm³/h |
| 5 | Compression Stages | Two-stage Compression |
| 6 | Compression Cylinder Configuration | Dual Horizontal Cylinders, Dual Hydraulic Drive Systems |
| 7 | Inlet Gas Temperature | ≤40℃ |
| 8 | Discharge Gas Temperature | ≤Ambient Temperature + 15℃ |
| 9 | Cooling Method | Water Cooling + Air Cooling |
| 10 | Cooling Medium | Antifreeze Coolant |
| 11 | Hydraulic Fluid | No. 46 Anti-wear Hydraulic Oil |
| 12 | Drive Method | Electric Motor-driven Hydraulic Pump |
| 13 | Lubrication Method | Oil-free Lubrication |
| 14 | Control Method | PLC + HMI (Touch Screen) + Soft Starter |
| 15 | Installation Type | Skid-mounted |
| 16 | Main Motor Installed Power | 44kW (2×22kW) |
| 17 | Total Installed Power | ≤45kW |
| Item | Specification |
|---|---|
| Flow Range | 0‑70 kg/min |
| Rated Working Pressure | 20 MPa |
| Max Working Pressure | 25 MPa |
| NO. | Item | Specification |
|---|---|---|
| 1 | Compression Medium | Natural Gas |
| 2 | Flow Rate Range | Standard Flow Rate: (2–40) kg/min |
| 3 | Explosion-proof Rating | Ex de ia Ga ib mb Ⅱ B T4 Gb |
| 4 | Maximum Permissible Error | ±1.0% |
| 5 | Maximum Working Pressure | 25Mpa |
| 6 | Ambient Temperature | (-25 ~ +55) ℃ |
| 7 | Measurement Unit | Quantity: kg Amount: CNY (RMB) Unit Price: CNY/kg |
| 8 | Single Transaction Display Range | (0 ~ 9999.99) kg/CNY |
| 9 | Cumulative Display Range | (0 ~ 99999999.99) kg/CNY |
| 10 | Preset Quantity Range | (1 ~ 9999.99) kg/CNY |
| 11 | Unit Price Setting Range | (0.01 ~ 99.99) CNY/kg |
Working Principle & Process

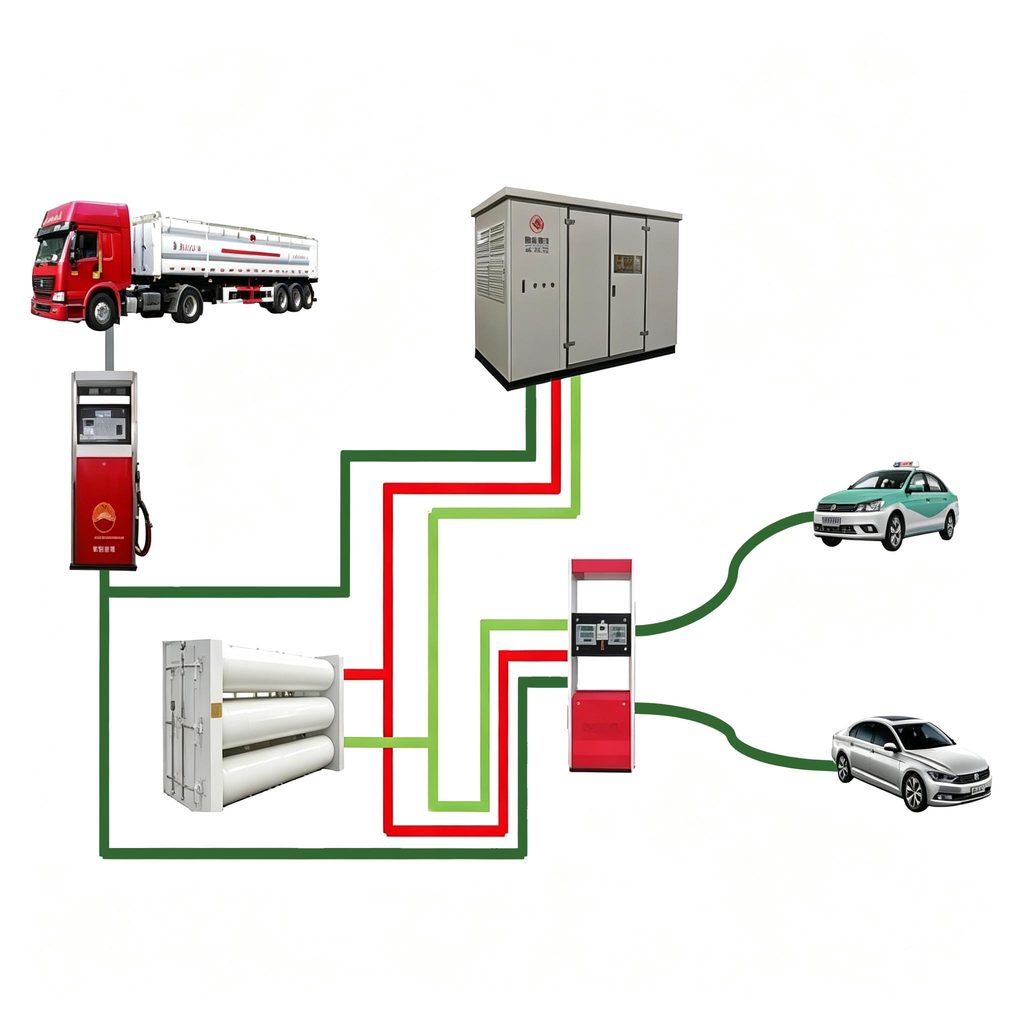

The CNG daughter station takes gas from transport trailers and delivers it to vehicles through a complete set of station equipment, including an unloading post, skid‑mounted compressor, storage cascade and CNG dispenser.
It adopts a three-line automatic filling process to ensure stable and continuous refueling:
- Low-pressure priority: Residual pressure gas from the trailer directly supplies vehicle filling.
- Medium-pressure supplement: When trailer pressure is insufficient, the medium-pressure cascade provides gas for refueling.
- High-pressure supply: When medium-pressure capacity drops, the high-pressure cascade takes over the filling work.
- Automatic pressure replenishment: Once the high-pressure cascade pressure falls below 20 MPa (adjustable), the compressor auto-starts to recharge and maintain system pressure.
This multi-stage switching design realizes unattended, stable and efficient CNG refueling operation.

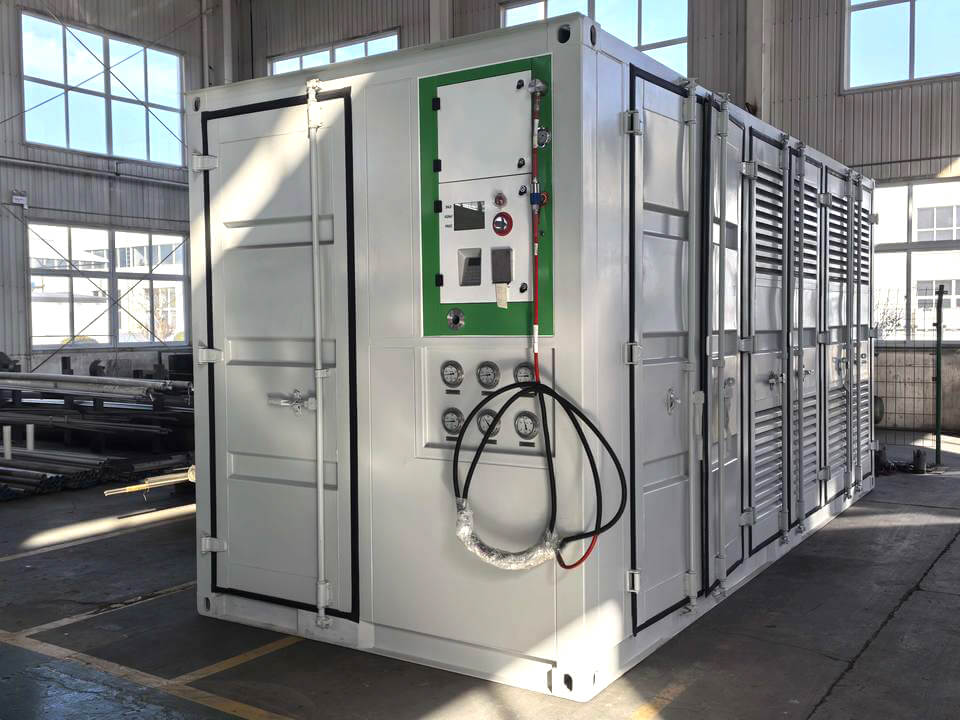

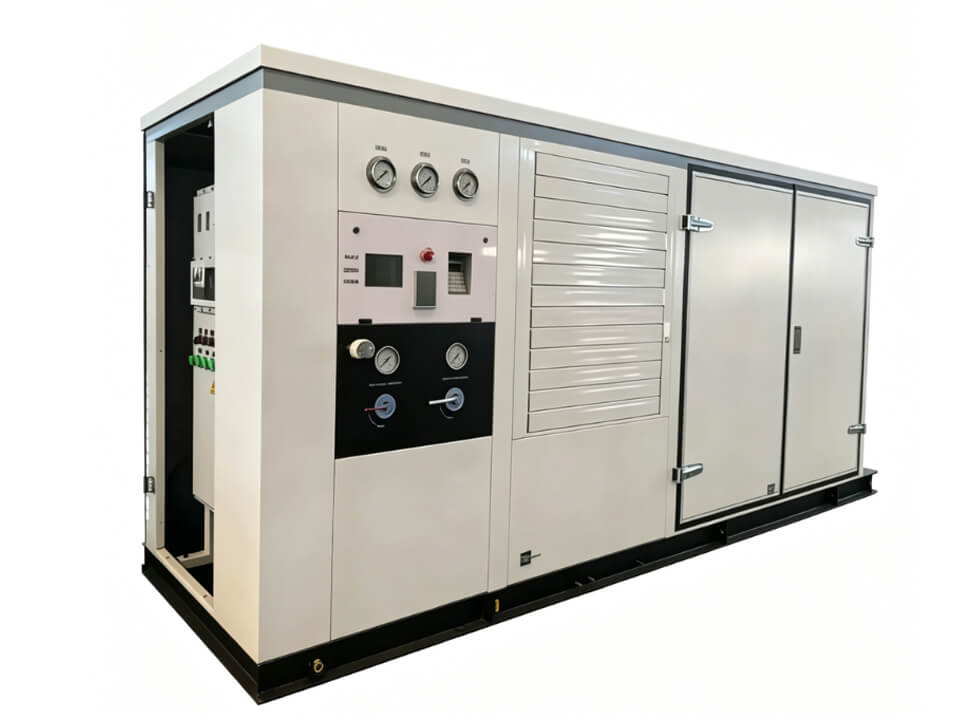

Product Gallery
FAQ
What core equipment does the complete CNG daughter station package consist of?
The full set of CNG daughter station equipment includes three core units: CNG unloading post, CNG daughter station compressor, and CNG dispenser.
What is the working pressure range of the CNG daughter station compressor?
The compressor suction pressure ranges from 3 MPa to 20 MPa, and the maximum discharge pressure is up to 25 MPa.
Is the CNG compression process oil-contaminated?
No. The compressor adopts oil-free lubrication compression technology to ensure clean natural gas.
What working mode does the CNG daughter station adopt for gas refueling?
It adopts a three-line automatic filling process, switching gas supply automatically by trailer pressure, medium-pressure cascade and high-pressure cascade, and the compressor automatically starts to replenish pressure when the high-pressure cascade pressure is below 20 MPa.
