LNG refueling station is a station that supplies liquefied natural gas (LNG). Firstly, the equipment manufacturer of LNG refueling stations states that they are mainly divided into two categories: fixed stations (LNG refueling stations and L-CNG refueling stations) and skid-mounted stations. Generally, the equipment of a pure LNG refueling station consists of LNG storage tanks, pump skids and submersible pumps, storage tank booster vaporizers, unloading vaporizers, EAG heaters, and filling machines, etc. Next, we will mainly talk about several common types of LNG refueling stations.
Introduction to Several Common LNG Refueling Stations

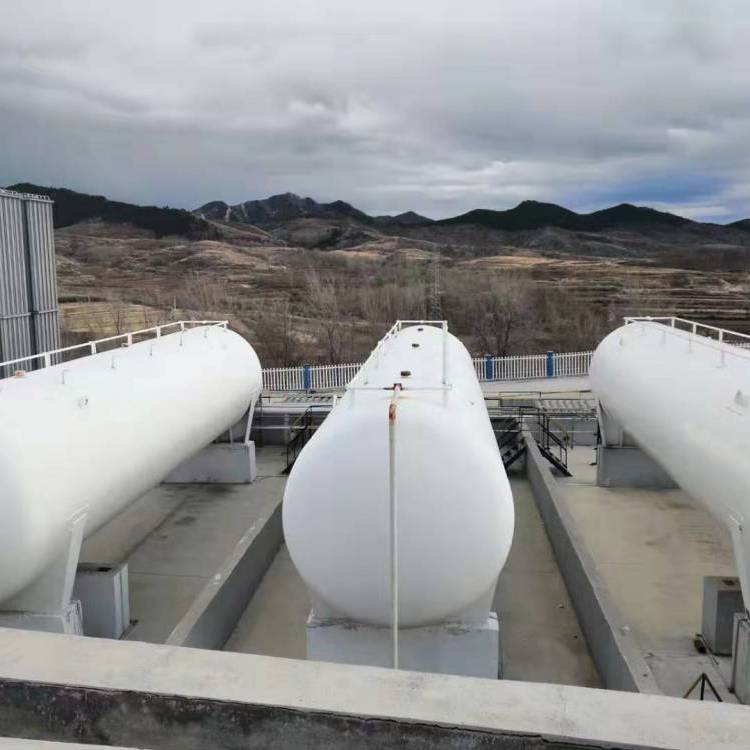

1.Fixed LNG refueling station
The fixed LNG refueling station installs the station equipment horizontally on the ground. The LNG storage tanks have a large capacity (generally over 50 cubic meters), occupying an area of about 5-7 acres. It is mainly used for filling large-capacity vehicles, such as heavy trucks or intercity buses in cities. Multiple refueling machines can be equipped to meet the refueling needs of many LNG cars. The cost of equipment and land for the fixed LNG refueling station is approximately 8-10 million yuan. Due to factors such as the large-scale planning of the fixed station and high investment, at present, it is generally necessary to have an annual gas consumption of more than 40 heavy trucks before considering the construction of a station.

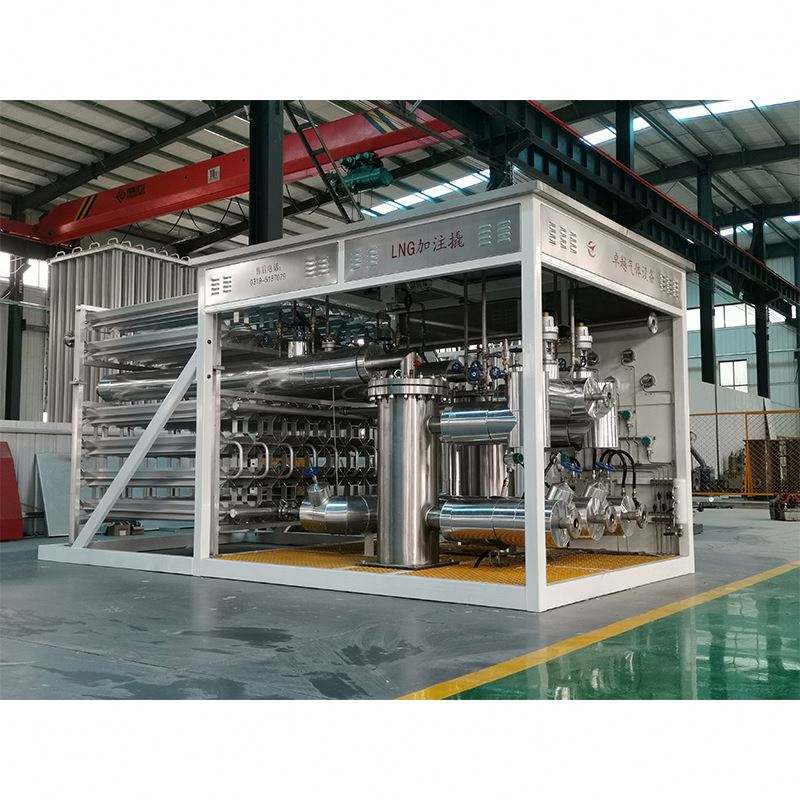

2.Skid-mounted LNG refueling station
This is a construction method where the storage tanks, various control equipment, and refueling machines are integrated and installed on a fixed base, and the entire structure is movable. The equipment manufacturer of LNG refueling stations states that a skid-mounted LNG refueling station only requires an LNG tanker to transport LNG as the gas source. The overall size is relatively small, with the total volume of the storage tanks generally not exceeding 50 cubic meters. The skid-mounted LNG refueling station occupies less land compared to the fixed refueling station. Compared to the fixed refueling station, it has a simpler process flow, a shorter construction period, lower investment, and is very suitable for transportation by cars. It is very adaptable to changes in the location of the refueling station according to market demand. It is particularly suitable for use in urban areas during the planning and construction stage. From practical application, when there are limitations in the location or when the vehicle count is between 10 and 40, the skid-mounted station construction method is usually chosen. The ground-mounted type only needs to fix the entire skid-mounted unit on the ground. The mobile type simply means placing the entire skid-mounted unit on a mobile vehicle. It is flexible and can be moved to any location with refueling needs at any time. Its storage capacity is relatively small and is currently mainly used in emergency situations. This refueling method is currently mainly used in areas with small LNG demand or where conditions for building a refueling station are not available, such as when there are only 10 to 40 vehicles, then a mobile refueling tanker can handle the refueling issue.

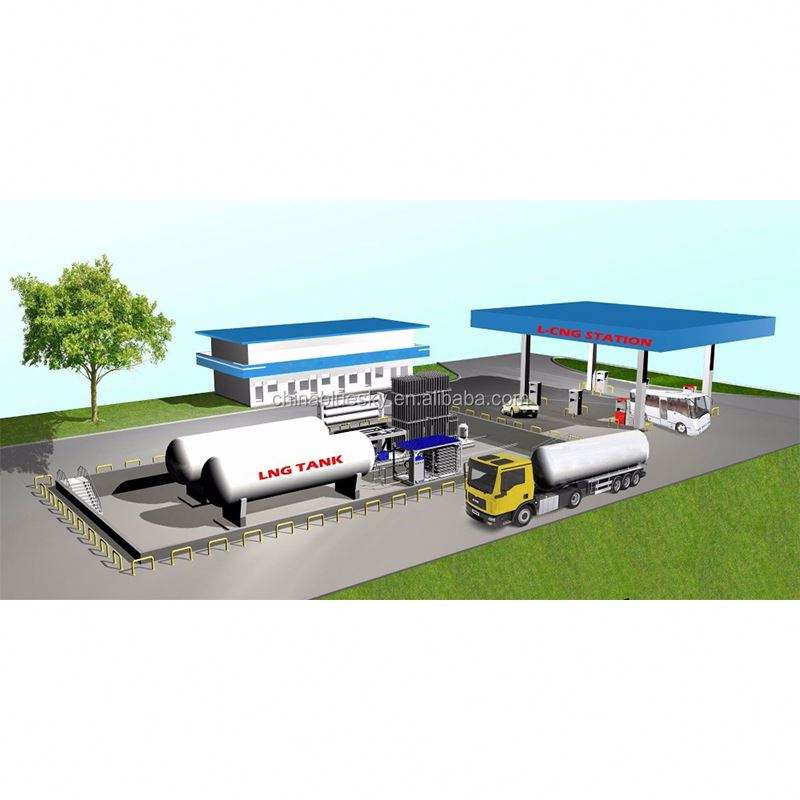

3.L-CNG refueling station
It is a dual-purpose refueling station, capable of filling both LNG and CNG. It has strong comprehensive performance. The equipment manufacturer of the LNG refueling station stated that the L-CNG refueling station compresses LNG through a high-pressure liquid pump, vaporizes it, and then refuels CNG vehicles. At the same time, a low-pressure liquid pump can also be used to refuel LNG vehicles. This type of refueling station is based on the LNG refueling station and adds equipment such as high-pressure vaporizers and high-pressure liquid pumps. Compared to a CNG refueling station of the same capacity, the investment and operating costs of the L-CNG refueling station are lower.
The above is the introduction about LNG refueling stations. Excellent Gas Equipment specializes in designing and manufacturing various refueling stations. We can provide customized solutions according to your needs. If you have any questions, please contact us through the website.
