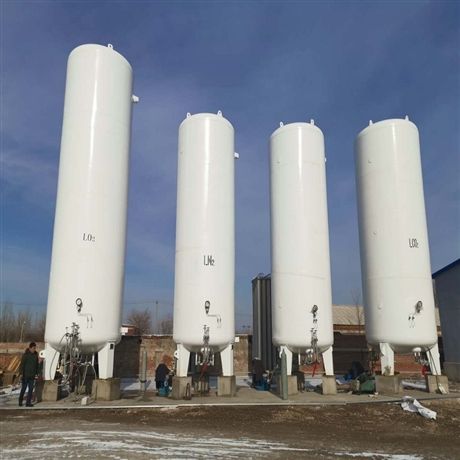

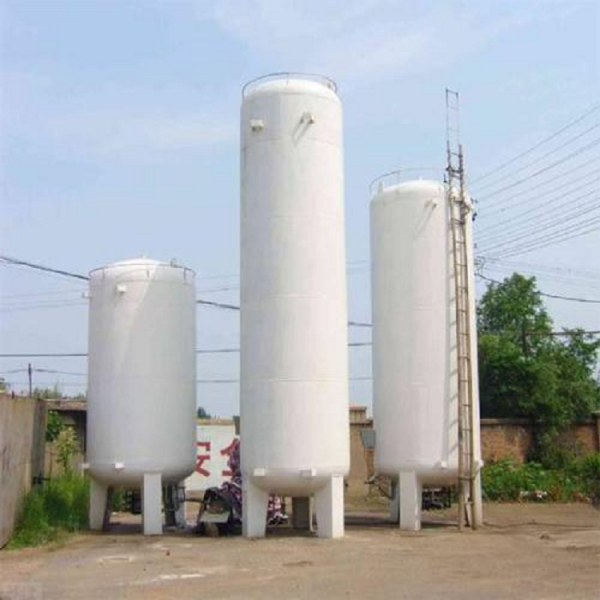

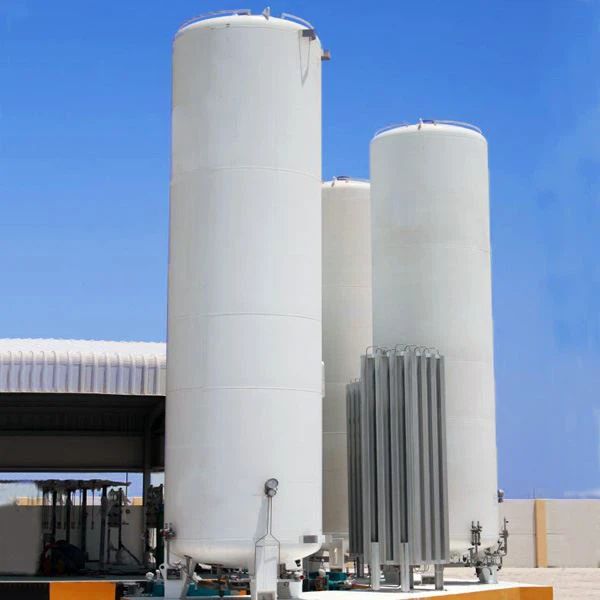

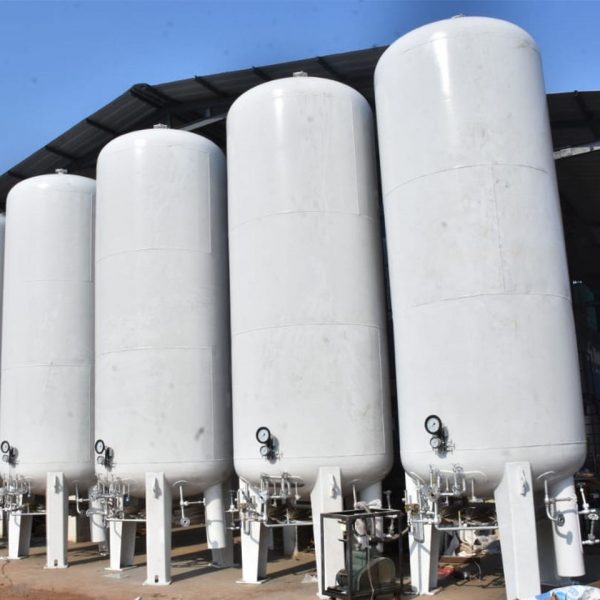

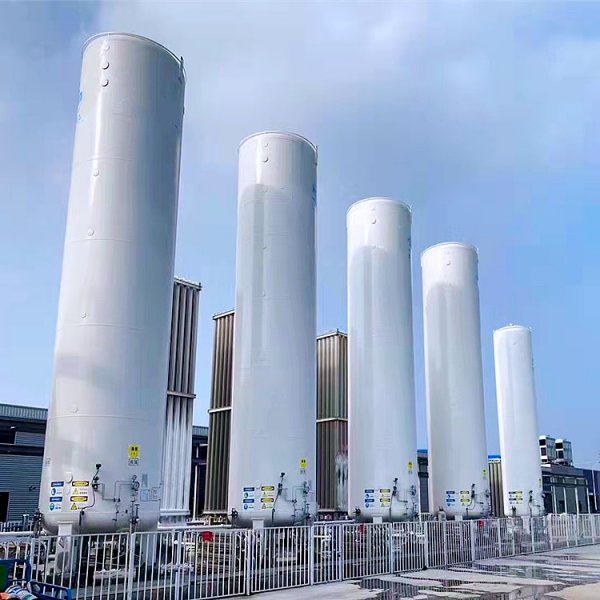

LCO2 Tank 10-150m³ 2.2Mpa for Industrial Use

🟨Product Overview

Double-wall, vacuum-insulated construction

Inner shell: 16MnDR low-temperature steel
Outer shell: Q245R carbon steel
Insulation: High-performance powder-coated vacuum insulation

Design Advantages
Vertical/Horizontal Options: Space-saving, modular design (40% less footprint than conventional tanks)

Typical Applications
• Food industry (carbonation, freezing)
• Electronics manufacturing (wafer cleaning)
• Petrochemical industry (EOR-assisted oil recovery)
• Medical and pharmaceutical industry (cryogenic storage)

We support custom capacities (5-200 m³) and pressures (up to 2.16 MPa). We offer OEM/ODM services.

🟨Specification

Cryogenic Liquid CO2 Storage Tank
Model	Volume(M3)	Working pressure（bar）	Dimension(mm)	Weight(KG)	Type	Standard
CFL-5/2.16	5	21.6	Φ2000*5130	4450	Vertical	GB ASME
CFL-10/2.16	10	21.6	Φ2100*7170	6986
CFL-15/2.16	15	21.6	Φ2500*6912	8810
CFL-20/2.16	20	21.6	Φ2500*8756	11328
CFL-25/2.16	25	21.6	Φ2900*7728	17961
CFL-30/2.16	30	21.6	Φ2900*8875	14660
CFL-50/2.16	50	21.6	Φ3200*11320	26097
CFL-60/2.16	60	21.6	Φ3200*13180	30220
CFL-100/2.16	100	21.6	Φ3500*16870	49627

🟨Company Profile

enter description here

Nangong Zhuoyue Gas Equipment CO., LTD. has over 20 years of experience in the gas industry. We specialize in ambient air vaporizers, electric vaporizers, PRMS platforms, and cryogenic vessels. We have exported our products to Mexico, Turkey, Russia, Singapore, Malaysia, Vietnam, Indonesia, Nigeria, and other countries. Our success is measured by the success of our customers.
